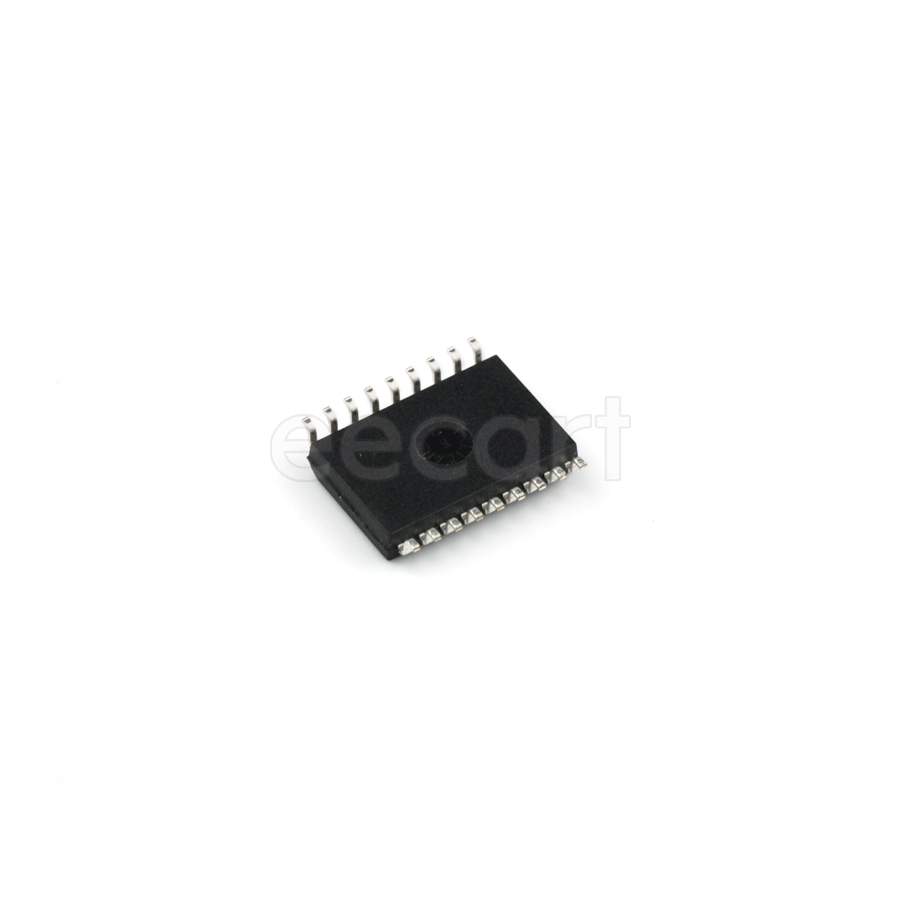

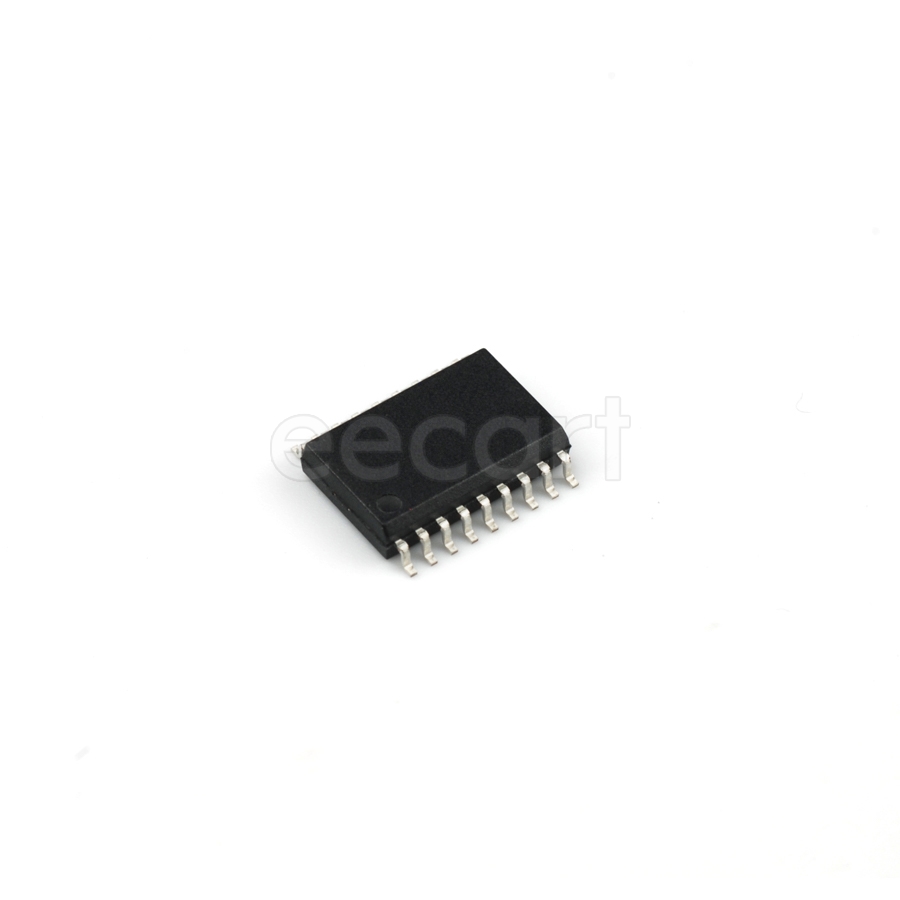

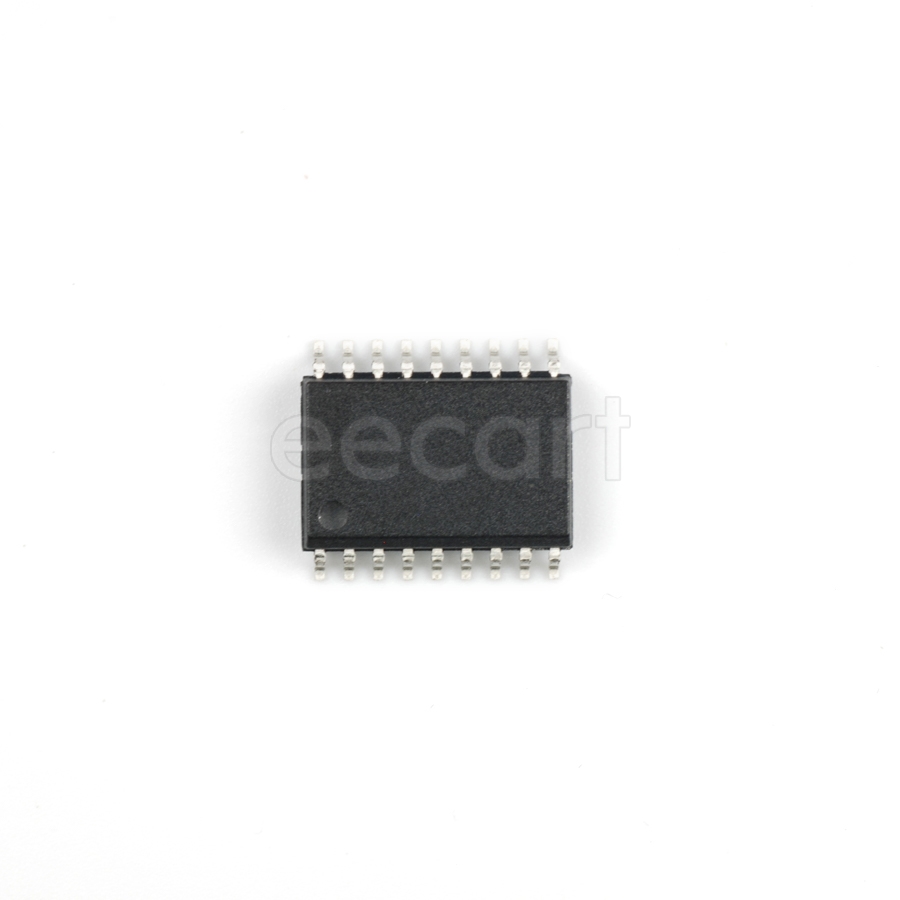

PIC18LF1220-I/SO
Manufacturer:
Microchip
Mfr.Part #:
PIC18LF1220-I/SO
Datasheet:
Description:
Microcontrollers SOIC-18 SMD/SMT 8 bit 4 kb FLASH
| Parameter | Value |
|---|---|
| Length | 11.55 mm |
| Width | 7.5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 18 |
| Height | 2.35 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Frequency | 40 MHz |
| Core Architecture(core/core processor) | PIC |
| Interface | UART, USART |
| Memory Size | 4 kb |
| Memory Type | FLASH |
| Number of I/Os | 16 |
| Peripherals | PWM |
| Max Power Dissipation | 1 W |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2 V |
| Access Time | 40 µs |
| Number of ADC Channels | 7 |
| Max Frequency | 40 MHz |
| RAM Size | 256 B |
| Data Bus Width | 8 bit |
| Number of Programmable I/O | 16 |
| Number of Timers/Counters | 4 |
| Schedule B | 8542310000 |
| Max Clock Frequency | 40 MHz |
| ADC Resolution | 10 bit |
| Oscillator Type | Internal |
| Operating Supply Voltage | 2 V to 5.5 V |
| RoHS | Compliant |
| Packaging | Tube |
Stock: 2
Distributors
pcbx
pcbxUnit Price$5.36789
Ext.Price$5.36789
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.36789 | $5.36789 |
| 10 | $5.02137 | $50.21370 |
| 25 | $4.69724 | $117.43100 |
| 50 | $4.32810 | $216.40500 |
| 100 | $3.98793 | $398.79300 |
