SST39VF400A-70-4C-B3KE
Manufacturer:
Microchip
Mfr.Part #:
SST39VF400A-70-4C-B3KE
Datasheet:
Description:

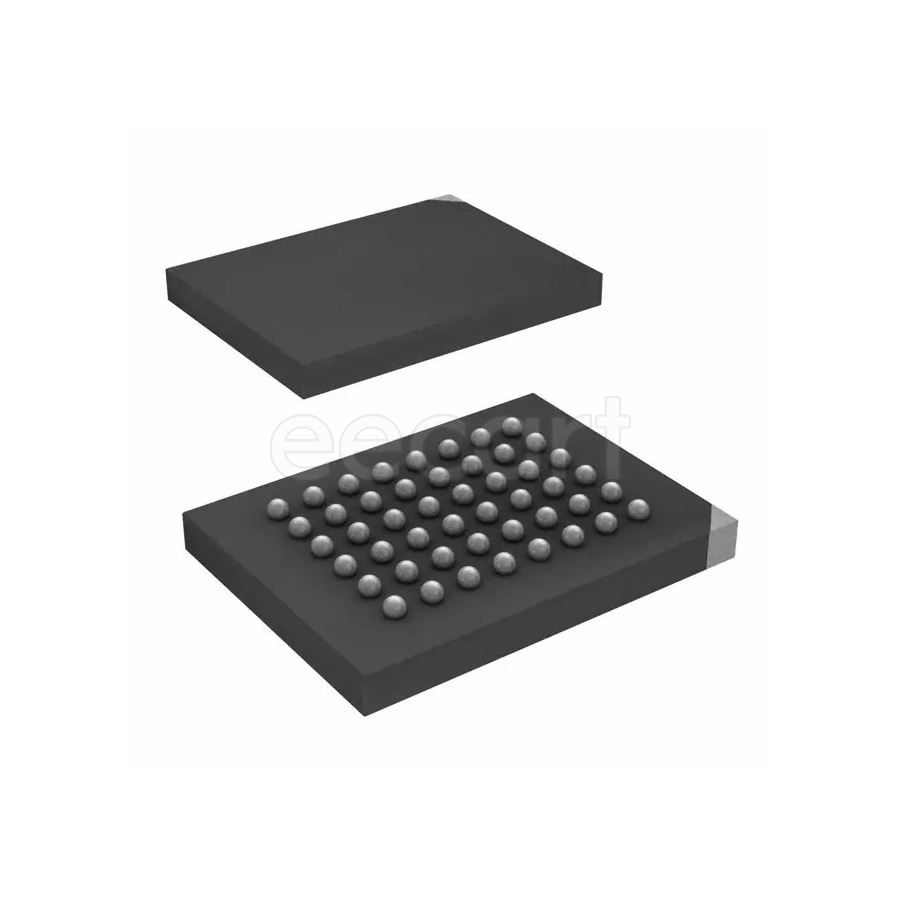

Flash TFBGA-48 SMD/SMT Parallel FLASH, NOR 512 kb
| Parameter | Value |
|---|---|
| Length | 8 mm |
| Width | 6 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 48 |
| Height | 1.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 14 MHz |
| Interface | Parallel |
| Memory Size | 512 kb |
| Memory Type | FLASH, NOR |
| Operating Supply Voltage | 3.3 V |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.7 V |
| Access Time | 70 ns |
| Nominal Supply Current | 30 mA |
| Address Bus Width | 18 b |
| Data Bus Width | 16 bit |
| Density | 4 Mb |
| Sync/Async | Asynchronous |
| Word Size | 16 b |
| Number of Words | 256000 |
| Schedule B | 8542320050 |
| Packaging | Tray |
Stock: 527
Distributors
pcbx
pcbxUnit Price$1.08918
Ext.Price$1.08918
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.08918 | $1.08918 |
| 10 | $1.04778 | $10.47780 |
| 25 | $1.00796 | $25.19900 |
| 50 | $0.92271 | $46.13550 |
| 100 | $0.84467 | $84.46700 |
