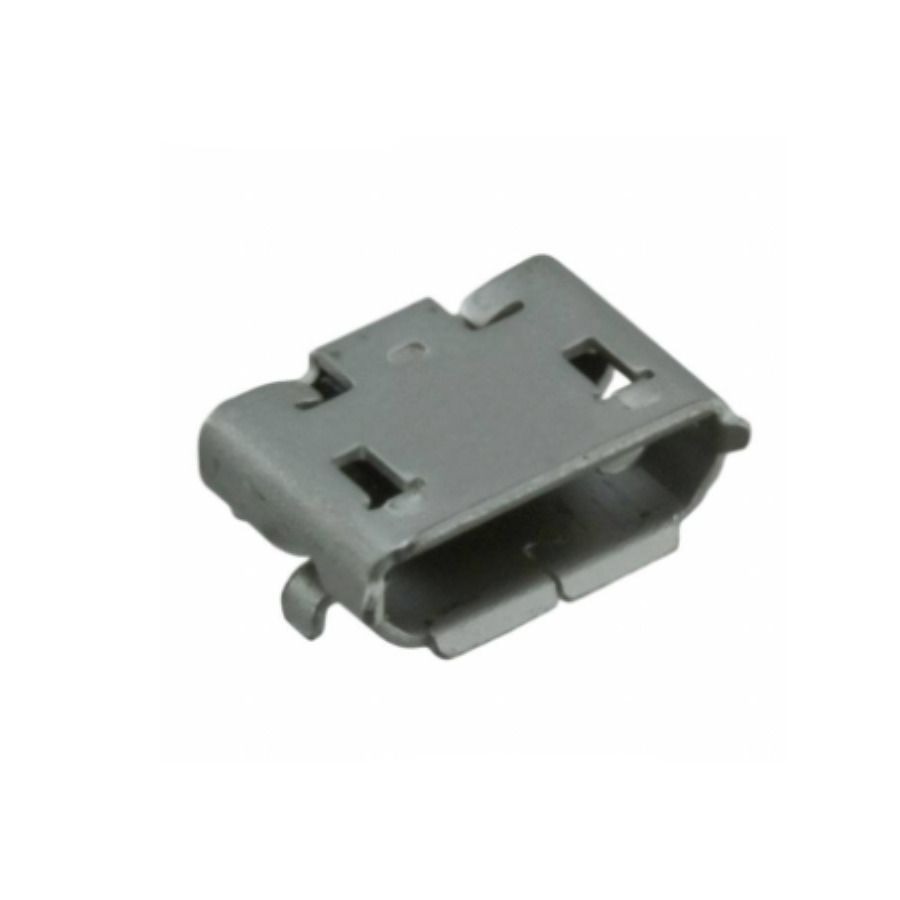

1050170001
Manufacturer:
Molex
Mfr.Part #:
1050170001
Datasheet:
Description:
USB Connectors SMD/SMT USB - Micro B Female USB 2.0
| Parameter | Value |
|---|---|
| Length | 8.2 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 5 |
| Height | 2.825 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 7.5 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Copper |
| Pitch | 650 µm |
| Type | USB - Micro B |
| Number of Terminals | 5 |
| Current Rating | 2.5 A |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 30 V |
| Plating | Gold |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Mounting Angle | Right Angle |
Stock: 12428
Distributors
pcbx
pcbxUnit Price$0.32112
Ext.Price$0.32112
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32112 | $0.32112 |
| 10 | $0.28700 | $2.87000 |
| 50 | $0.25651 | $12.82550 |
| 100 | $0.22441 | $22.44100 |
| 500 | $0.19633 | $98.16500 |
| 1000 | $0.18439 | $184.39000 |
| 3000 | $0.17317 | $519.51000 |
