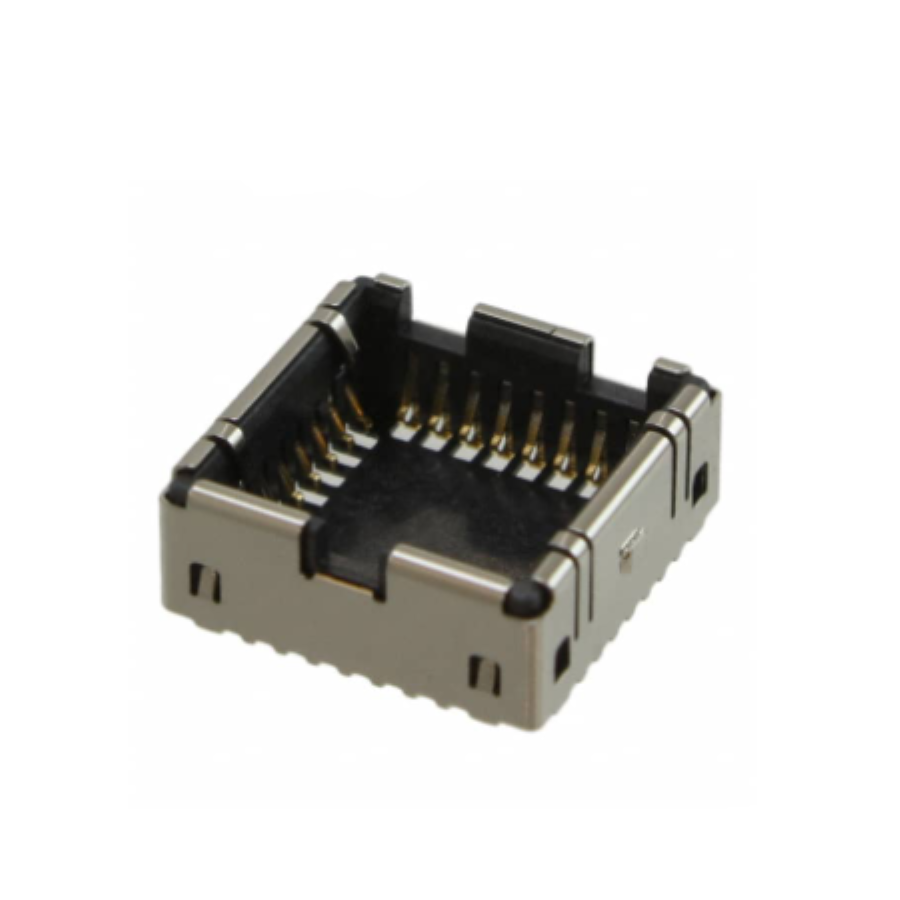

105028-1001
Manufacturer:
Molex
Mfr.Part #:
105028-1001
Datasheet:
Description:
IC and Component Sockets SMD/SMT Camera Socket Number of Positions:32 Number of Rows:4 Pitch:900 µm
| Parameter | Value |
|---|---|
| Length | 10.6 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 50 V |
| Height | 4.35 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 10.6 mm |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 900 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94V-0 |
| Number of Circuits | 8 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Number of Contacts | 32 |
| Connector Type | Camera Socket |
| Number of Positions | 32 |
| Number of Rows | 4 |
| Insulation Material | Thermoplastic |
| Housing Material | Thermoplastic |
| Plating | Gold |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | CN |
| Contact Finish - Mating | Gold |
Stock: 425
Distributors
pcbx
pcbxUnit Price$1.55764
Ext.Price$1.55764
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.55764 | $1.55764 |
| 10 | $1.40891 | $14.08910 |
