1051640001
Manufacturer:
Molex
Mfr.Part #:
1051640001
Datasheet:
Description:

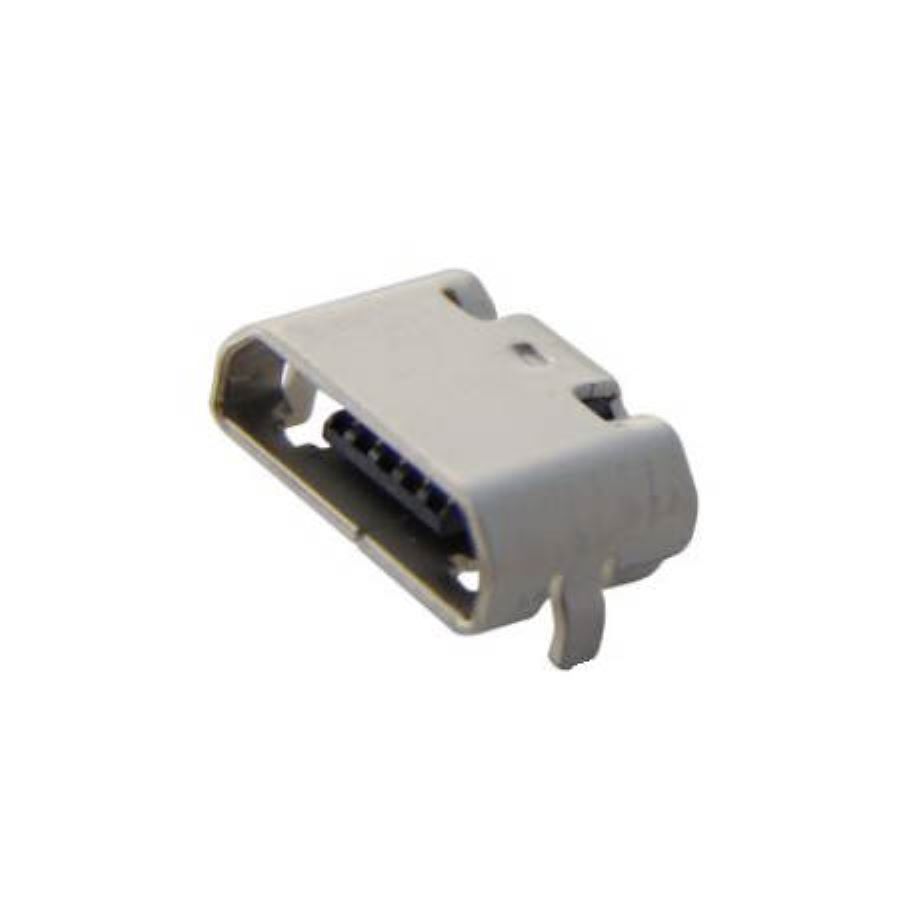

USB Connectors SMD/SMT USB - Micro B Female USB 2.0
| Parameter | Value |
|---|---|
| Length | 7.5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 5 |
| Height | 2.715 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 5.15 mm |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold, Nickel |
| Pitch | 650 µm |
| Type | USB - Micro B |
| Number of Terminals | 5 |
| Current Rating | 1.8 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 5 |
| USB Standard | USB 2.0 |
| Connector Type | USB |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 30 V |
| Plating | Gold |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Mounting Angle | Right Angle |
Stock: 1471
Distributors
pcbx
pcbxUnit Price$0.39994
Ext.Price$0.39994
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39994 | $0.39994 |
| 10 | $0.37389 | $3.73890 |
| 25 | $0.34954 | $8.73850 |
| 50 | $0.32678 | $16.33900 |
| 100 | $0.30864 | $30.86400 |
| 300 | $0.29151 | $87.45300 |
| 500 | $0.27533 | $137.66500 |
| 1000 | $0.26004 | $260.04000 |
| 3000 | $0.24560 | $736.80000 |
| 5000 | $0.23197 | $1159.85000 |
