42878-6218
Manufacturer:
Molex
Mfr.Part #:
42878-6218
Datasheet:
Description:

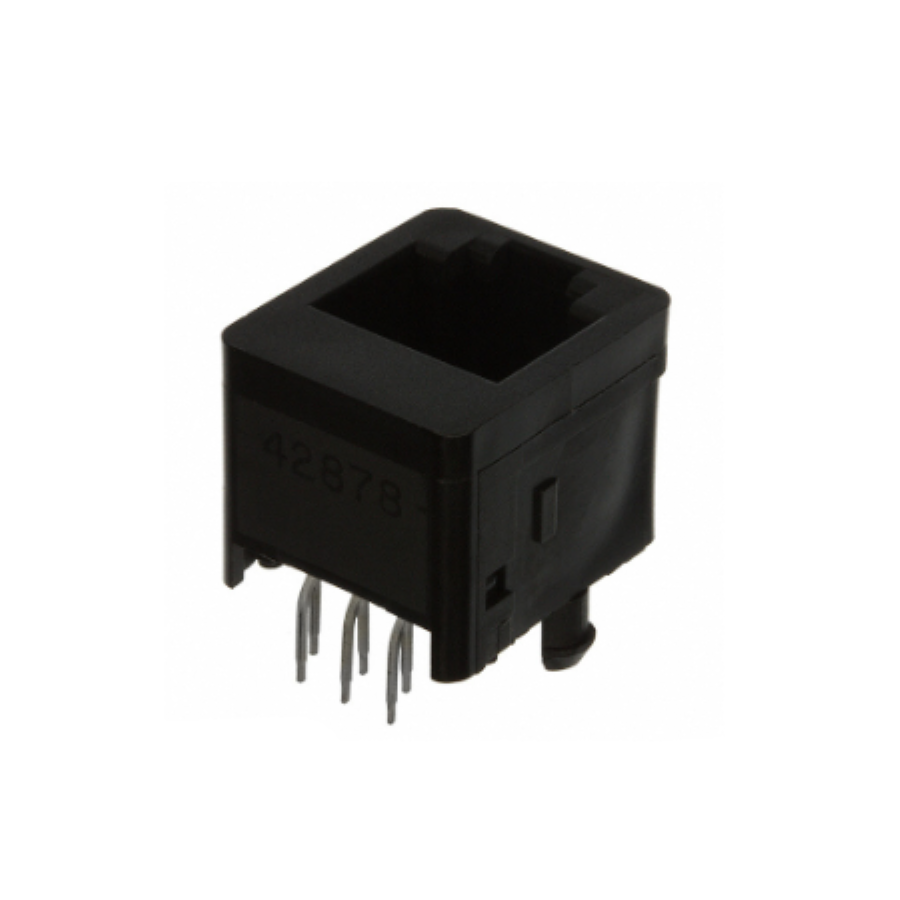

Modular / Ethernet Connectors Through Hole RJ11 Female Current Rating:1.5 A Voltage Rating:150 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 13.97 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 150 V |
| Depth | 15.88 mm |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1.5 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 6 |
| Direction(Counting Sequence) | User Selectable |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 150 V |
| Housing Color | Black |
| Plating | Tin |
| Number of Positions Loaded | 6 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Mounting Angle | Vertical |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ11 |
| Number of Positions/Contacts | 6P6C |
Stock: 2110
Distributors
pcbx
pcbxUnit Price$0.73182
Ext.Price$0.73182
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.73182 | $0.73182 |
| 10 | $0.63180 | $6.31800 |
| 25 | $0.62980 | $15.74500 |
| 50 | $0.62780 | $31.39000 |
| 100 | $0.62581 | $62.58100 |
