502244-3330
Manufacturer:
Molex
Mfr.Part #:
502244-3330
Datasheet:
Description:

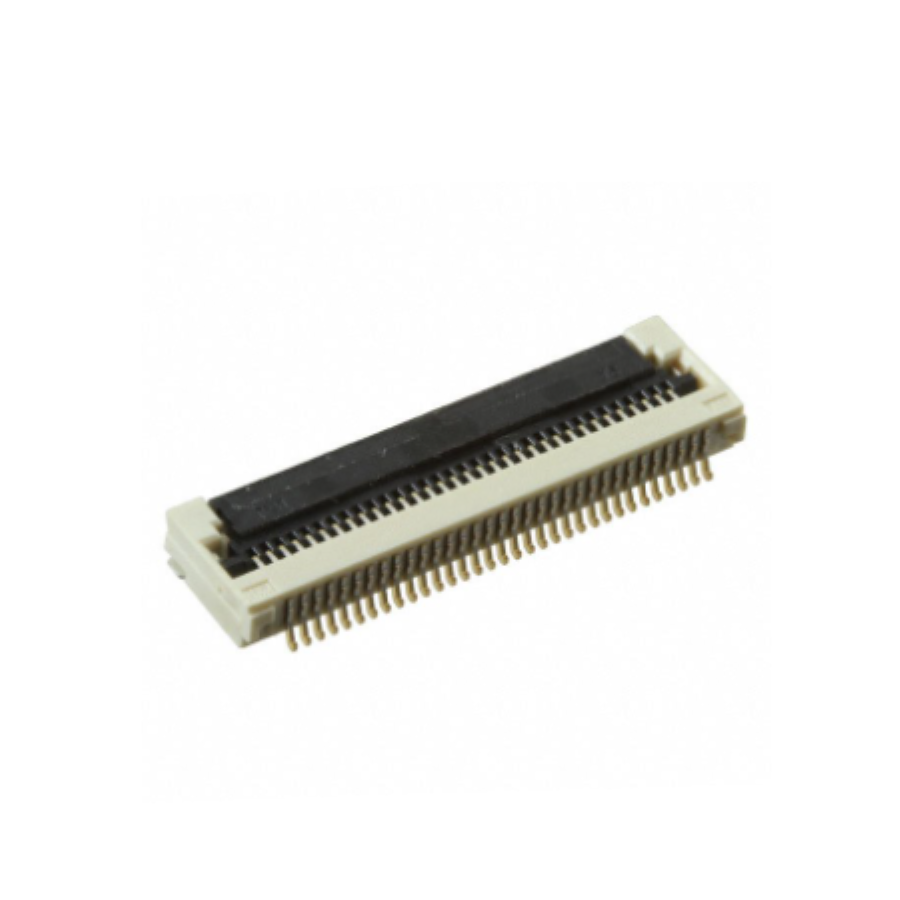

FFC / FPC SMD/SMT Number of Positions:33 400 mA 50 V
| Parameter | Value |
|---|---|
| Length | 19.1 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 5.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 500 µm |
| Current Rating | 400 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94V-0 |
| Number of Circuits | 33 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Number of Contacts | 33 |
| Number of Positions | 33 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Contact Location | Bottom |
| Contact Resistance | 40 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Actuator Material | Glass, Nylon, Polyamide |
| Housing Color | Natural |
| Plating | Gold |
| Stackable | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
| Mounting Angle | Right Angle |
Stock: 1266
Distributors
pcbx
pcbxUnit Price$1.30206
Ext.Price$1.30206
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.30206 | $1.30206 |
| 10 | $1.06353 | $10.63530 |
| 25 | $0.98231 | $24.55775 |
| 50 | $0.92589 | $46.29450 |
| 100 | $0.86946 | $86.94600 |
| 300 | $0.80786 | $242.35800 |
| 500 | $0.75063 | $375.31500 |
| 1000 | $0.71301 | $713.01000 |
