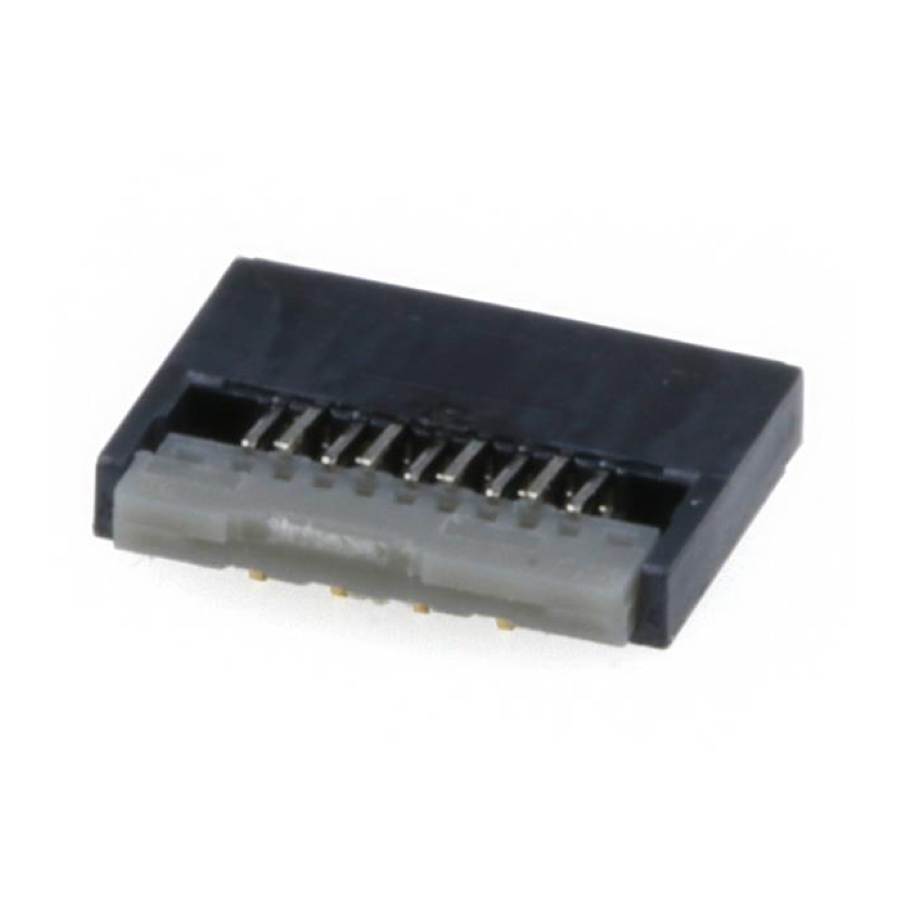

504754-0720
Manufacturer:
Molex
Mfr.Part #:
504754-0720
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:7 200 mA 50 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 7 |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Halogen Free | Low Halogen |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Pitch | 304.8 µm |
| Current Rating | 200 mA |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 7 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Actuator Material | Glass, Nylon, Polyamide |
| Plating | Gold |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
Stock: 26221
Distributors
pcbx
pcbxUnit Price$0.40694
Ext.Price$0.40694
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.40694 | $0.40694 |
| 10 | $0.39303 | $3.93030 |
| 25 | $0.37959 | $9.48975 |
| 50 | $0.36029 | $18.01450 |
| 100 | $0.34197 | $34.19700 |
| 300 | $0.30791 | $92.37300 |
| 500 | $0.27725 | $138.62500 |
| 1000 | $0.24964 | $249.64000 |
| 3000 | $0.22443 | $673.29000 |
| 5000 | $0.20176 | $1008.80000 |
| 10000 | $0.18296 | $1829.60000 |
