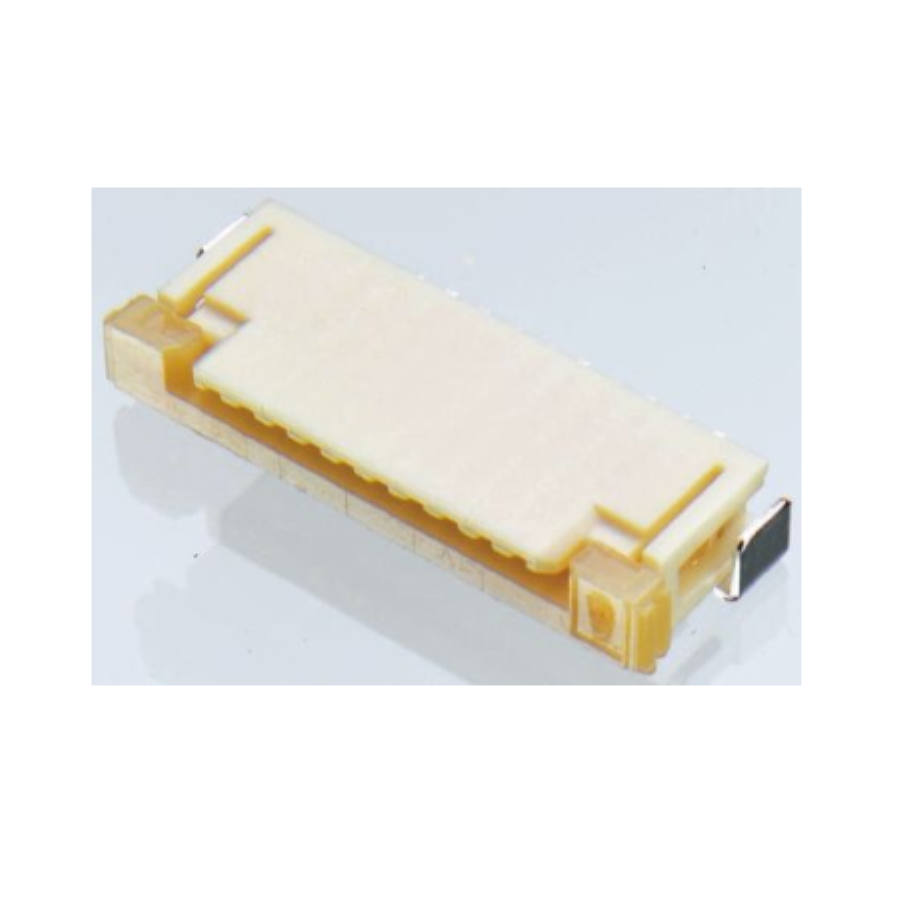

52271-1669
Manufacturer:
Molex
Mfr.Part #:
52271-1669
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:16 500 mA 50 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Material | Bronze |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 1 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 1 mm |
| Current Rating | 500 mA |
| Max Voltage Rating (DC) | 50 V |
| Flammability Rating | UL94V-0 |
| Number of Circuits | 16 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Gender | Receptacle |
| Number of Contacts | 16 |
| ELV | Compliant |
| Connector Type | Contacts |
| Number of Positions | 16 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 20 mΩ |
| Actuator Material | Polyphenylene Sulfide |
| Plating | Tin |
| Stackable | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | JP |
| Mounting Angle | Right Angle |
Stock: 1540
Distributors
pcbx
pcbxUnit Price$1.17638
Ext.Price$1.17638
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.17638 | $1.17638 |
| 10 | $0.98231 | $9.82310 |
| 25 | $0.86348 | $21.58700 |
| 50 | $0.84139 | $42.06950 |
| 100 | $0.81987 | $81.98700 |
| 300 | $0.78135 | $234.40500 |
| 500 | $0.74464 | $372.32000 |
| 1000 | $0.70104 | $701.04000 |
| 3000 | $0.67224 | $2016.72000 |
| 5000 | $0.64462 | $3223.10000 |
