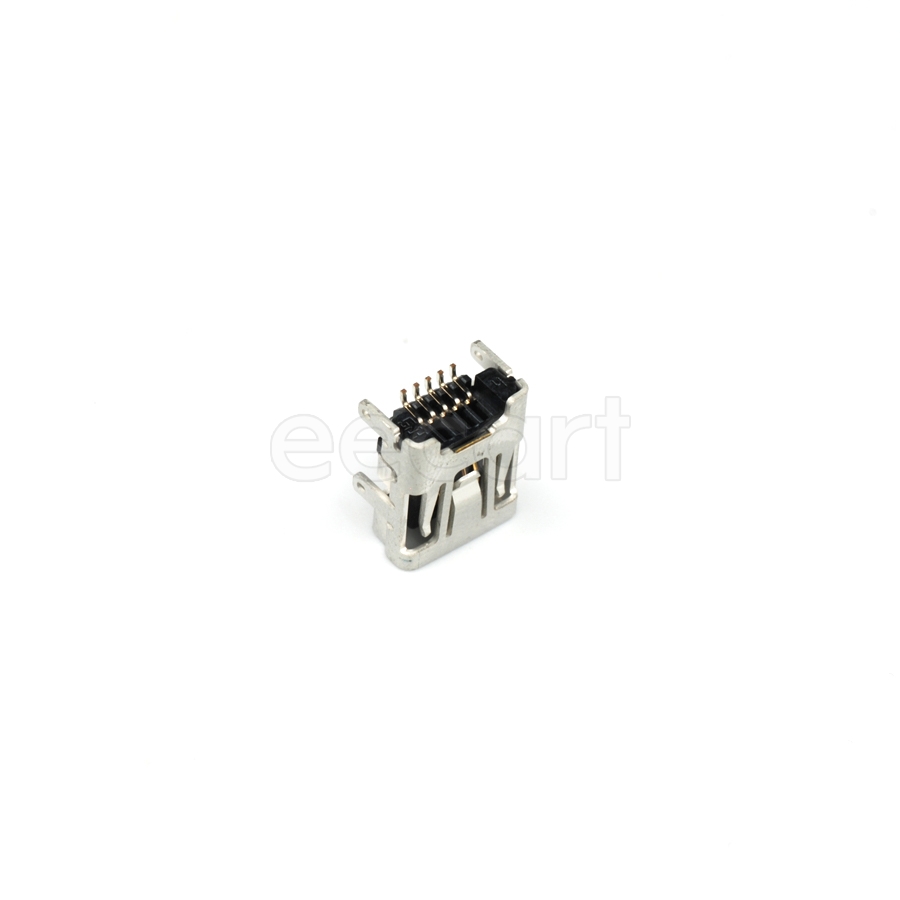

54819-0572
Manufacturer:
Molex
Mfr.Part #:
54819-0572
Datasheet:
Description:
USB Connectors SMD/SMT USB - mini B Female USB 2.0
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 9.9 mm |
| Width | 6.9 mm |
| Termination | Solder |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 5 |
| Height | 4.15 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 800 µm |
| Number of Terminals | 5 |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Working Voltage | 30 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black, Grey |
| Gender | Female |
| Number of Contacts | 5 |
| Data Rate | 480 Mbps |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Housing Material | Polyphthalamide |
| Number of Ports | 1 |
| Contact Resistance | 50 mΩ |
| Housing Color | Black |
| Plating | Tin |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | US |
| Shielding | Shielded |
| Mounting Angle | Right Angle |
| Type | USB - mini B |
Stock: 7858
Distributors
pcbx
pcbxUnit Price$0.78226
Ext.Price$0.78226
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.78226 | $0.78226 |
| 10 | $0.67625 | $6.76250 |
| 25 | $0.63180 | $15.79500 |
| 50 | $0.59930 | $29.96500 |
| 100 | $0.56169 | $56.16900 |
| 300 | $0.52866 | $158.59800 |
| 500 | $0.49757 | $248.78500 |
| 1000 | $0.43174 | $431.74000 |
