548190519
Manufacturer:
Molex
Mfr.Part #:
548190519
Datasheet:
Description:

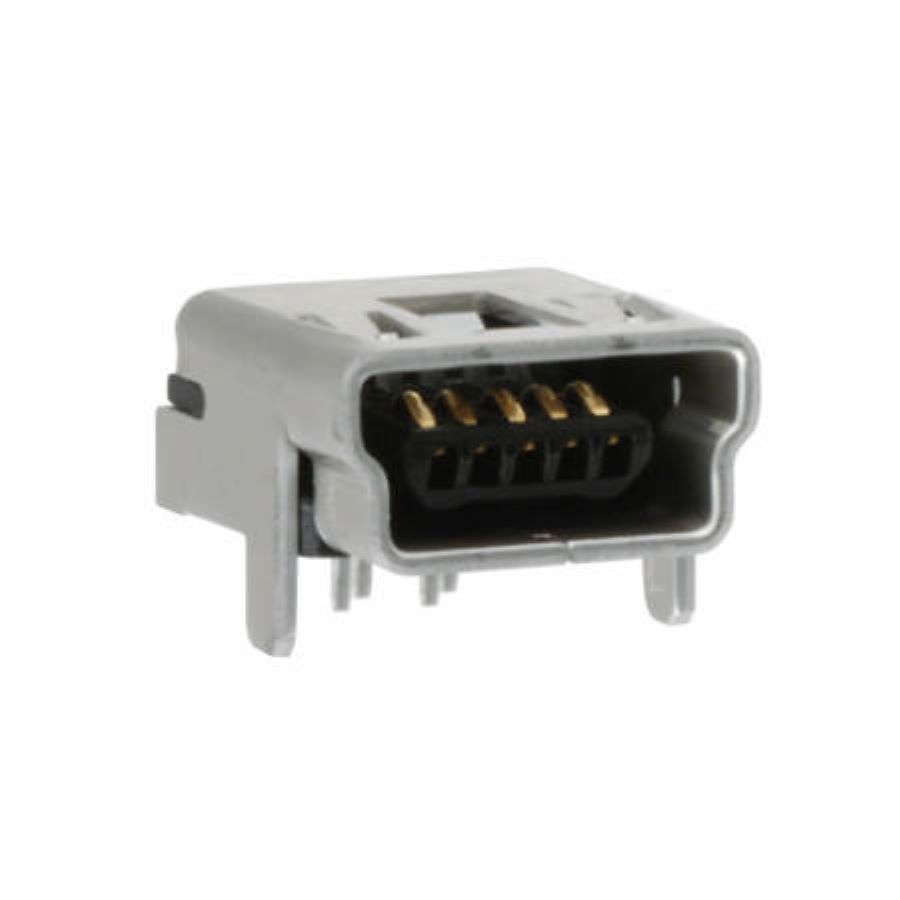

USB Connectors Through Hole USB - mini B Female USB 2.0
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 7.7 mm |
| Width | 6.9 mm |
| Termination | Solder |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 5 |
| Packaging | Tray |
| Voltage Rating | 30 V |
| Depth | 9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 800 µm |
| Type | USB - mini B |
| Number of Terminals | 5 |
| Current Rating | 200 mA |
| Max Current Rating | 1 A |
| Working Voltage | 30 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black, Grey |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 5 |
| Data Rate | 480 Mbps |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Ports | 1 |
| Contact Resistance | 50 mΩ |
| Housing Color | Black |
| Plating | Tin |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | US |
| Mounting Angle | Right Angle |
Stock: 1911
Distributors
pcbx
pcbxUnit Price$0.50141
Ext.Price$0.50141
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50141 | $0.50141 |
| 10 | $0.40349 | $4.03490 |
| 25 | $0.37152 | $9.28800 |
| 50 | $0.34209 | $17.10450 |
| 100 | $0.31499 | $31.49900 |
| 300 | $0.29004 | $87.01200 |
| 500 | $0.26706 | $133.53000 |
| 1000 | $0.24590 | $245.90000 |
