559090374
Manufacturer:
Molex
Mfr.Part #:
559090374
Datasheet:
Description:

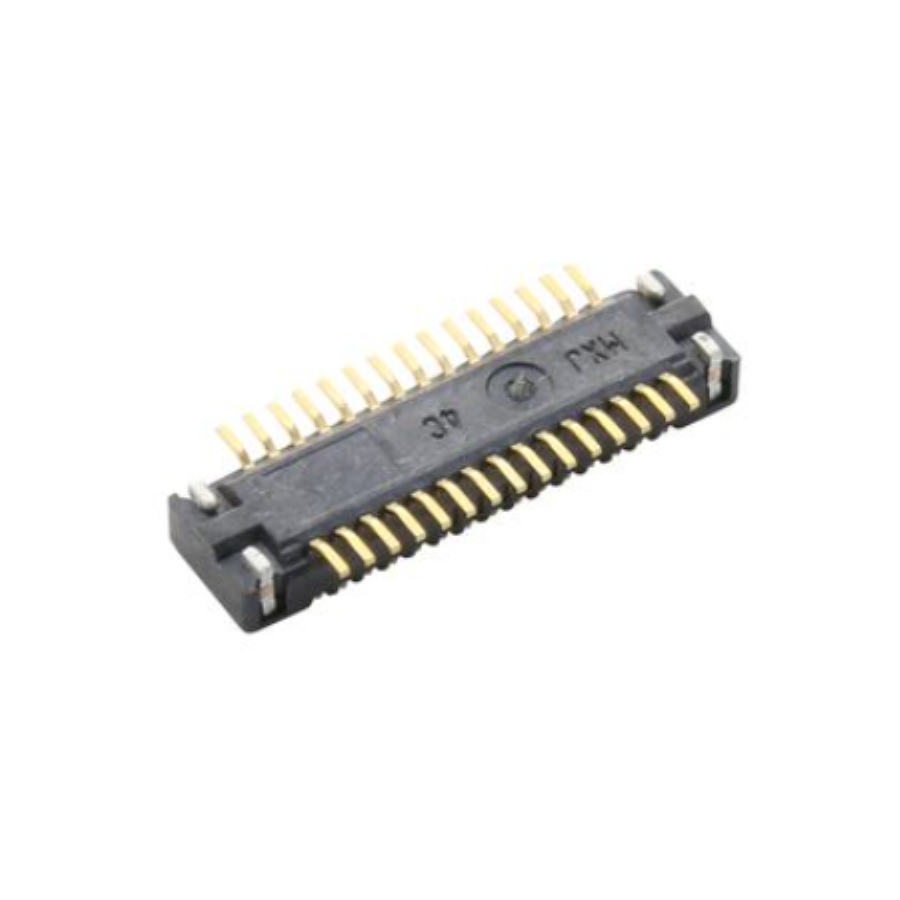

Board to Board Connectors SMD/SMT Number of Positions:16 Number of Rows:2 Pitch:400 µm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Material | Brass |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 400 µm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 400 µm |
| Current Rating | 300 mA |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 30 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 30 |
| ELV | Compliant |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Housing Material | Thermoplastic |
| Plating | Gold |
| glow wire compliant | Non-compliant |
| Stack Height | 1.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | KR |
| Mounting Angle | Vertical |
Stock: 612
Distributors
pcbx
pcbxUnit Price$0.32890
Ext.Price$0.32890
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32890 | $0.32890 |
| 10 | $0.29338 | $2.93380 |
| 50 | $0.26170 | $13.08500 |
| 100 | $0.22818 | $22.81800 |
| 500 | $0.19895 | $99.47500 |
| 1000 | $0.19056 | $190.56000 |
| 3000 | $0.18253 | $547.59000 |
| 5000 | $0.17483 | $874.15000 |
