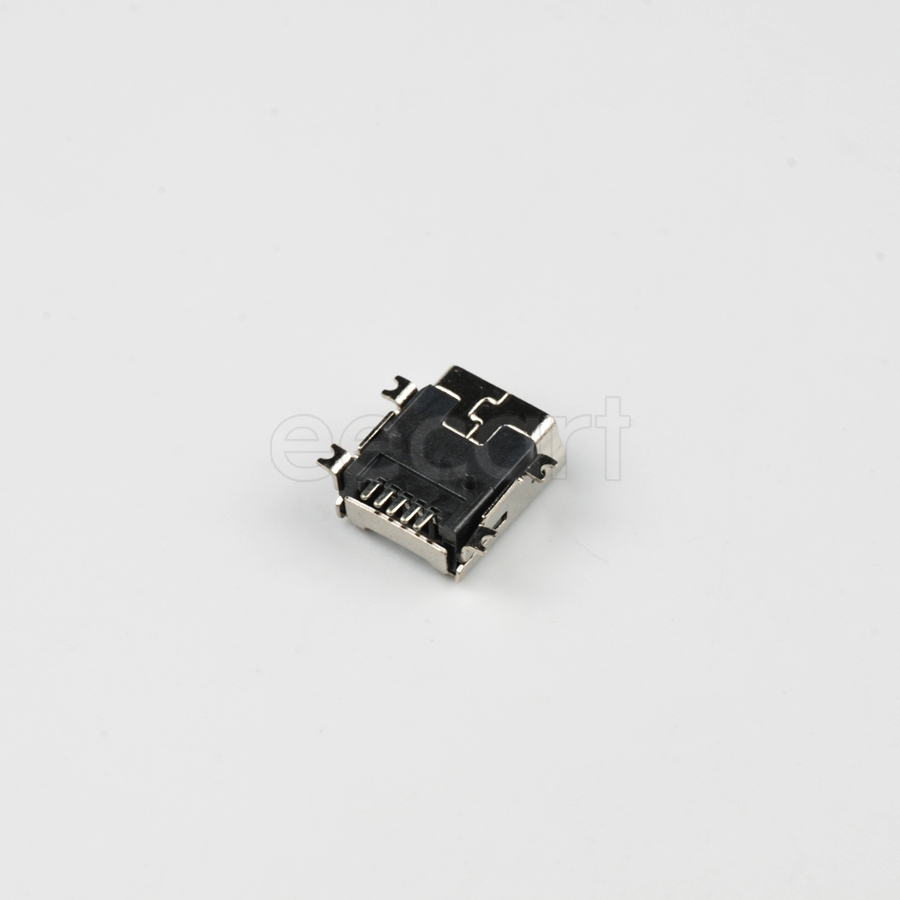

67503-1020
Manufacturer:
Molex
Mfr.Part #:
67503-1020
Datasheet:
Description:
USB Connectors SMD/SMT Female USB 2.0
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 9.9 mm |
| Width | 6.9 mm |
| Termination | Solder |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 5 |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 800 µm |
| Number of Terminals | 5 |
| Terminal Pitch | 800 µm |
| Current Rating | 1.5 A |
| Max Voltage Rating (DC) | 3.03 kV |
| Working Voltage | 30 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 5 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black, Grey |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 5 |
| Data Rate | 480 Mbps |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle, USB |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Contact Resistance | 50 mΩ |
| Max Voltage Rating (AC) | 30 V |
| Plating | Tin |
| glow wire compliant | Non-compliant |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 11 months ago) |
| Country of Origin | HK |
| Mounting Angle | Right Angle |
Stock: 6828
Distributors
pcbx
pcbxUnit Price$0.50099
Ext.Price$0.50099
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50099 | $0.50099 |
| 10 | $0.43516 | $4.35160 |
| 25 | $0.41635 | $10.40875 |
| 50 | $0.40438 | $20.21900 |
| 100 | $0.38900 | $38.90000 |
| 300 | $0.35503 | $106.50900 |
| 500 | $0.32402 | $162.01000 |
| 1000 | $0.30521 | $305.21000 |
