73251-1350
Manufacturer:
Molex
Mfr.Part #:
73251-1350
Datasheet:
Description:

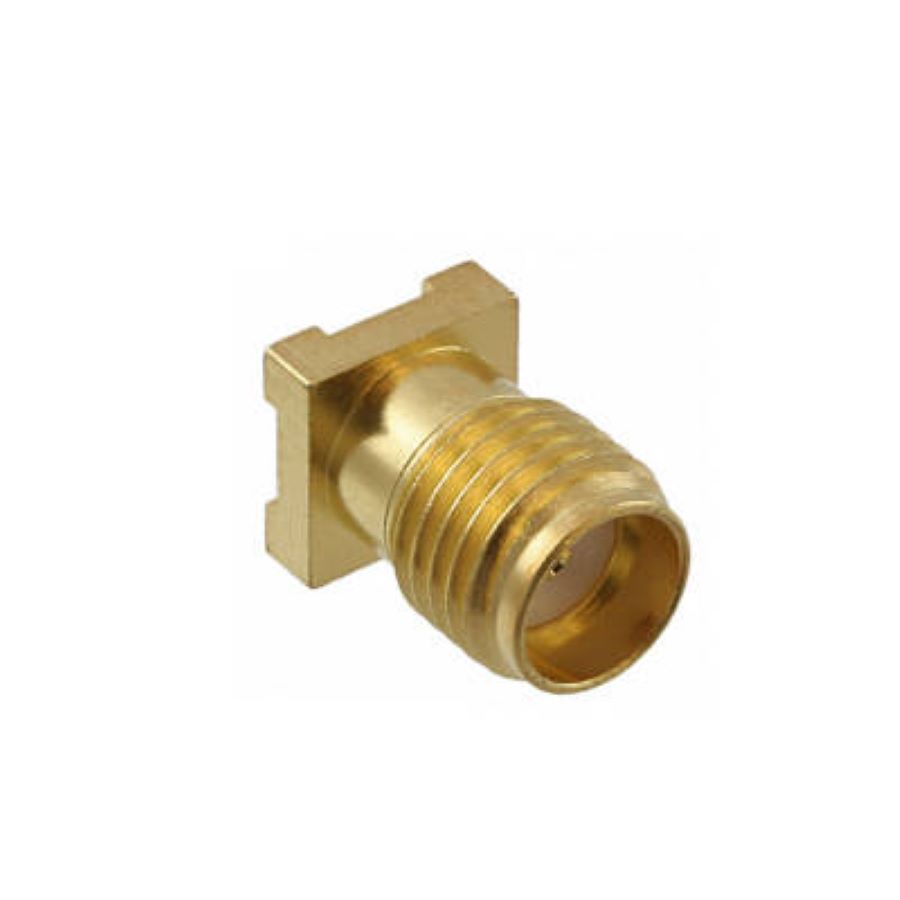

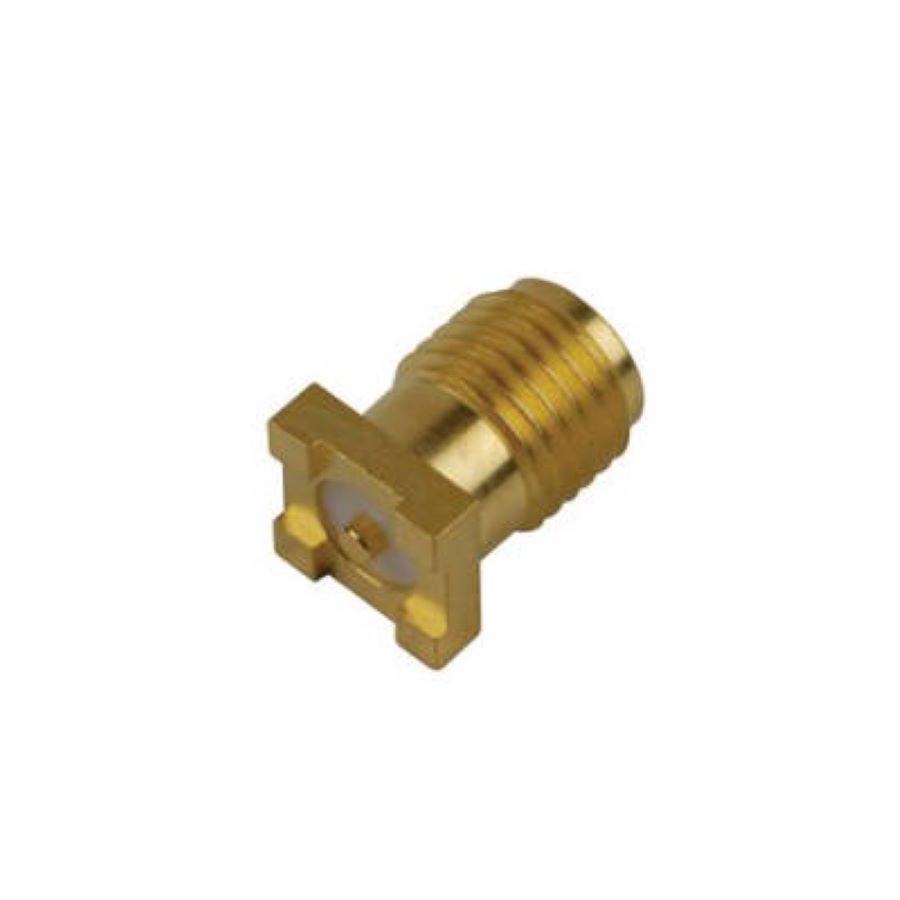

RF / Coaxial Connectors SMD/SMT SMA, Socket 50 Ω
| Parameter | Value |
|---|---|
| Length | 6.35 mm |
| Termination | Solder |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -65 °C |
| Height | 9.655 mm |
| Packaging | Bulk |
| Voltage Rating | 500 V |
| Depth | 6.35 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Copper, Gold |
| Frequency | 18 GHz |
| Orientation | Straight, Right Angle |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Gender | Jack (Socket) |
| Number of Contacts | 1 |
| Body Material | Brass |
| Connector Type | SMA, Socket |
| Max Frequency | 18 GHz |
| Insulation Material | Polytetrafluoroethylene |
| Fastening Type | Threaded |
| Housing Color | Gold |
| Body Plating | Gold |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 year ago) |
| Country of Origin | TW |
| RF Series | SMA |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 1659
Distributors
pcbx
pcbxUnit Price$2.54683
Ext.Price$2.54683
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.54683 | $2.54683 |
| 10 | $2.16554 | $21.65540 |
| 25 | $2.02790 | $50.69750 |
| 50 | $1.93385 | $96.69250 |
| 100 | $1.79632 | $179.63200 |
| 300 | $1.66857 | $500.57100 |
| 500 | $1.54991 | $774.95500 |
| 1000 | $1.43970 | $1439.70000 |
