734120114
Manufacturer:
Molex
Mfr.Part #:
734120114
Datasheet:
Description:

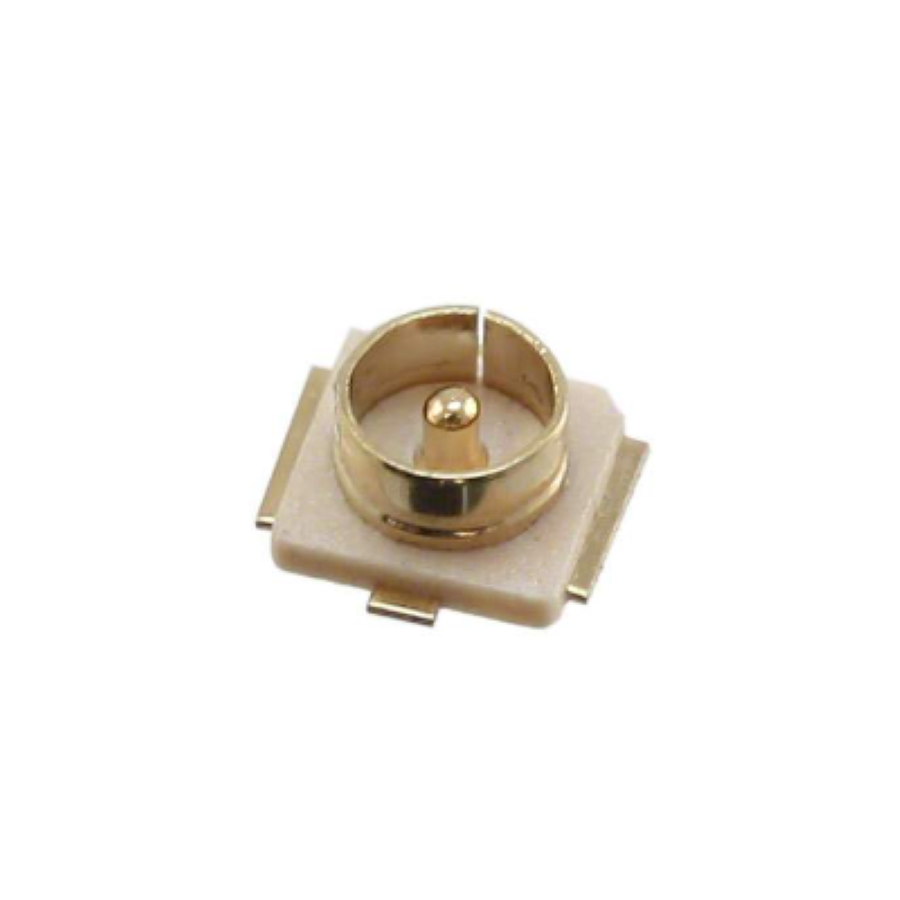

RF / Coaxial Connectors SMD/SMT Coaxial 50 Ω
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.36 mm |
| Packaging | Reel |
| Voltage Rating | 60 V |
| Halogen Free | Low Halogen |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Brass |
| Frequency | 6 GHz |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Gender | Female |
| Number of Contacts | 1 |
| Connector Type | Coaxial |
| Max Frequency | 6 GHz |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 8 months ago) |
| Country of Origin | TW |
| RF Series | Micro-RF |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 4759
Distributors
pcbx
pcbxUnit Price$0.41069
Ext.Price$0.41069
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41069 | $0.41069 |
| 10 | $0.33389 | $3.33890 |
| 25 | $0.30884 | $7.72100 |
| 50 | $0.28567 | $14.28350 |
| 100 | $0.26423 | $26.42300 |
| 300 | $0.25515 | $76.54500 |
| 500 | $0.24638 | $123.19000 |
| 1000 | $0.23435 | $234.35000 |
