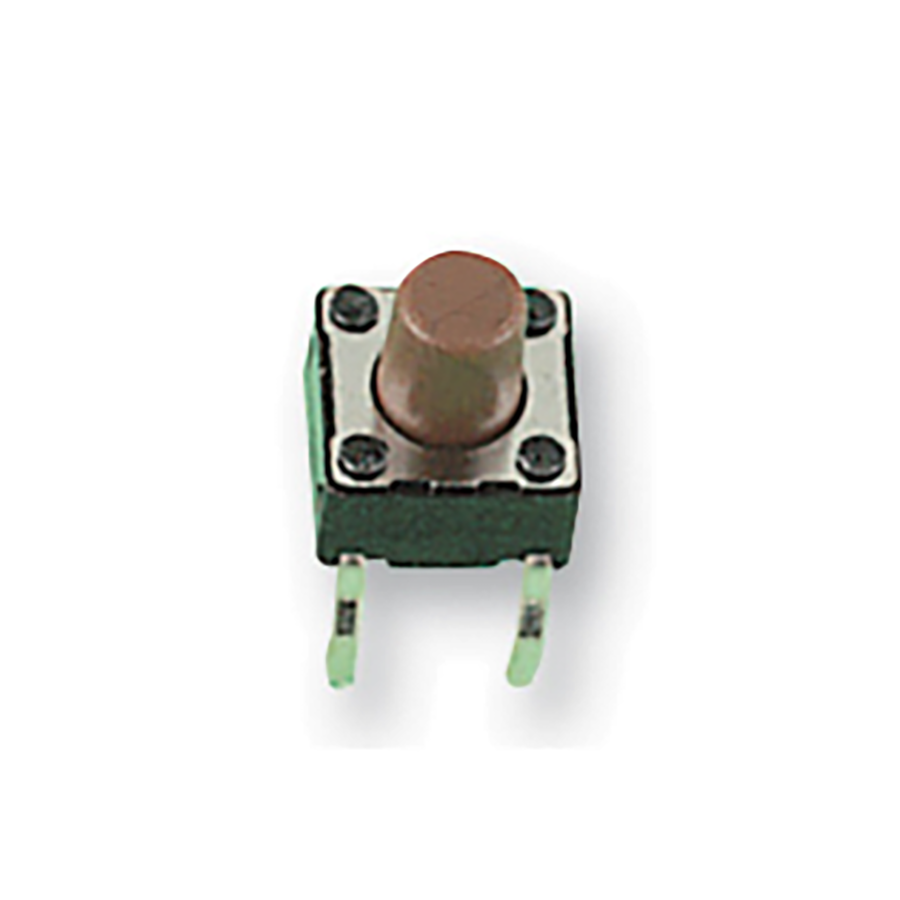

MCDTS6-1N
Manufacturer:
Multicomp
Mfr.Part #:
MCDTS6-1N
Datasheet:
Description:
Switches Through Hole SPST Voltage Rating (DC):12 V ON - OFF Current Rating:50 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | Through Hole |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Height | 4.3 mm |
| Circuit Type | SPST |
| Packaging | Bulk |
| RoHS | Compliant |
| Insulation Resistance | 10 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Bronze, Silver |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 50 mA |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | ON - OFF |
| Illumination Type | Illuminated |
| Contact Current Rating | 50 mA |
Stock: 4465
Distributors
pcbx
pcbxUnit Price$0.16766
Ext.Price$0.16766
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16766 | $0.16766 |
| 10 | $0.16067 | $1.60670 |
| 50 | $0.15397 | $7.69850 |
| 100 | $0.14755 | $14.75500 |
| 500 | $0.12928 | $64.64000 |
| 1000 | $0.11327 | $113.27000 |
| 3000 | $0.09924 | $297.72000 |
