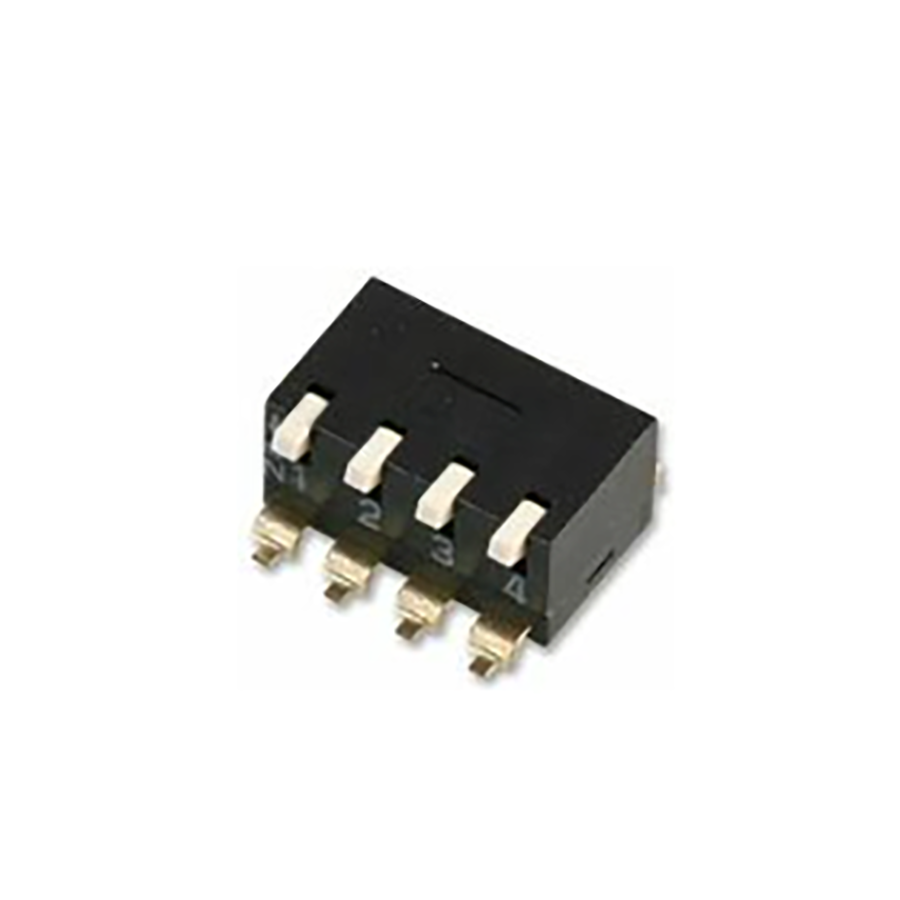

MCEPM-04
Manufacturer:
Multicomp
Mfr.Part #:
MCEPM-04
Datasheet:
Description:
Switches SMD/SMT SPST Current Rating:25 mA 800 gf 2 kCycles
| Parameter | Value |
|---|---|
| Width | 10.06 mm |
| Number of Pins | 4 |
| Height | 5 mm |
| Circuit Type | SPST |
| Packaging | Bulk |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Operating Force | 800 gf |
| Termination Style | Through Hole |
| Life (Cycles) | 2 kCycles |
Stock: 1501
Distributors
pcbx
pcbxUnit Price$1.89702
Ext.Price$1.89702
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.89702 | $1.89702 |
| 10 | $1.79858 | $17.98580 |
| 25 | $1.70525 | $42.63125 |
| 50 | $1.61676 | $80.83800 |
| 100 | $1.53287 | $153.28700 |
| 300 | $1.41716 | $425.14800 |
| 500 | $1.31018 | $655.09000 |
| 1000 | $1.24461 | $1244.61000 |
