MCNP63V226M8X11.5
Manufacturer:
Multicomp
Mfr.Part #:
MCNP63V226M8X11.5
Datasheet:
Description:

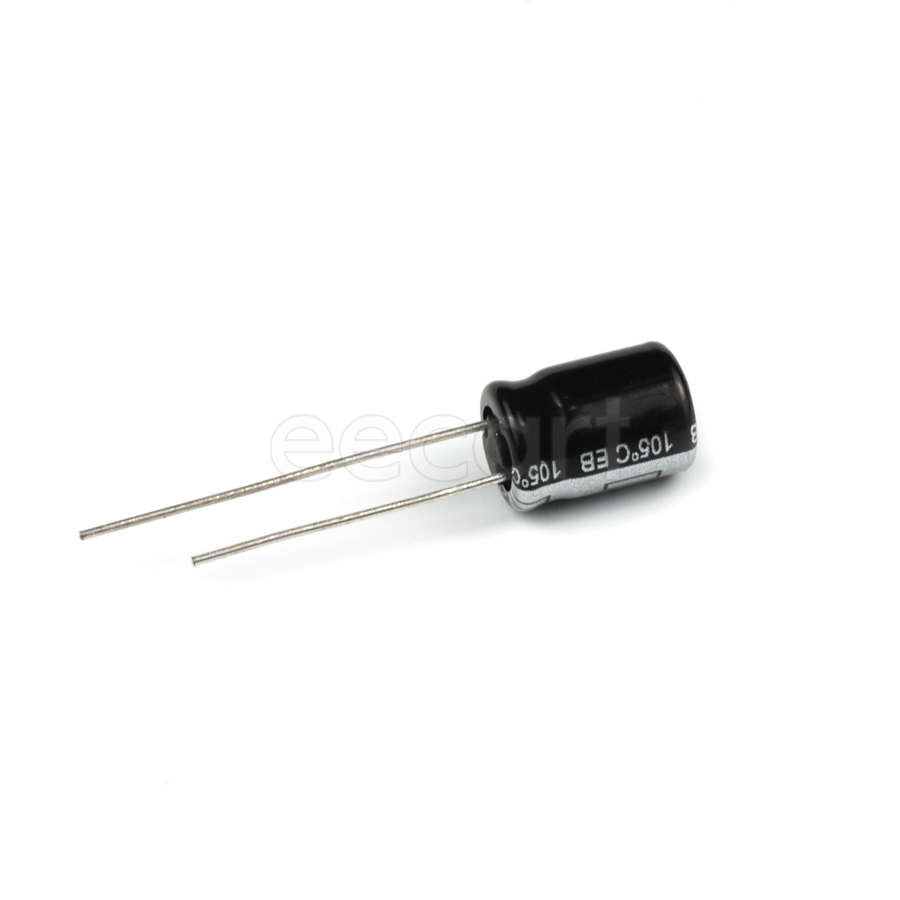

Aluminum Electrolytic Capacitors 8.00mmD×11.50mmH Through Hole 22 µF 20 % 63 V
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Voltage Rating (DC) | 63 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Diameter | 8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 63 V |
| Number of Pins | 2 |
| Height | 11.5 mm |
| Voltage Rating | 63 V |
| RoHS | Compliant |
| Lead Pitch | 3.5 mm |
| REACH SVHC | Unknown |
| Packaging | Reel |
| Height - Seated (Max) | 11.5 mm |
Stock: 11841
Distributors
pcbx
pcbxUnit Price$0.32586
Ext.Price$0.32586
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32586 | $0.32586 |
| 10 | $0.23089 | $2.30890 |
| 50 | $0.16360 | $8.18000 |
| 100 | $0.13129 | $13.12900 |
| 500 | $0.10315 | $51.57500 |
| 1000 | $0.08498 | $84.98000 |
| 3000 | $0.07573 | $227.19000 |
| 5000 | $0.06749 | $337.45000 |
| 10000 | $0.06611 | $661.10000 |
