CSTLS8M00G56-B0
Manufacturer:
Murata
Mfr.Part #:
CSTLS8M00G56-B0
Datasheet:
Description:

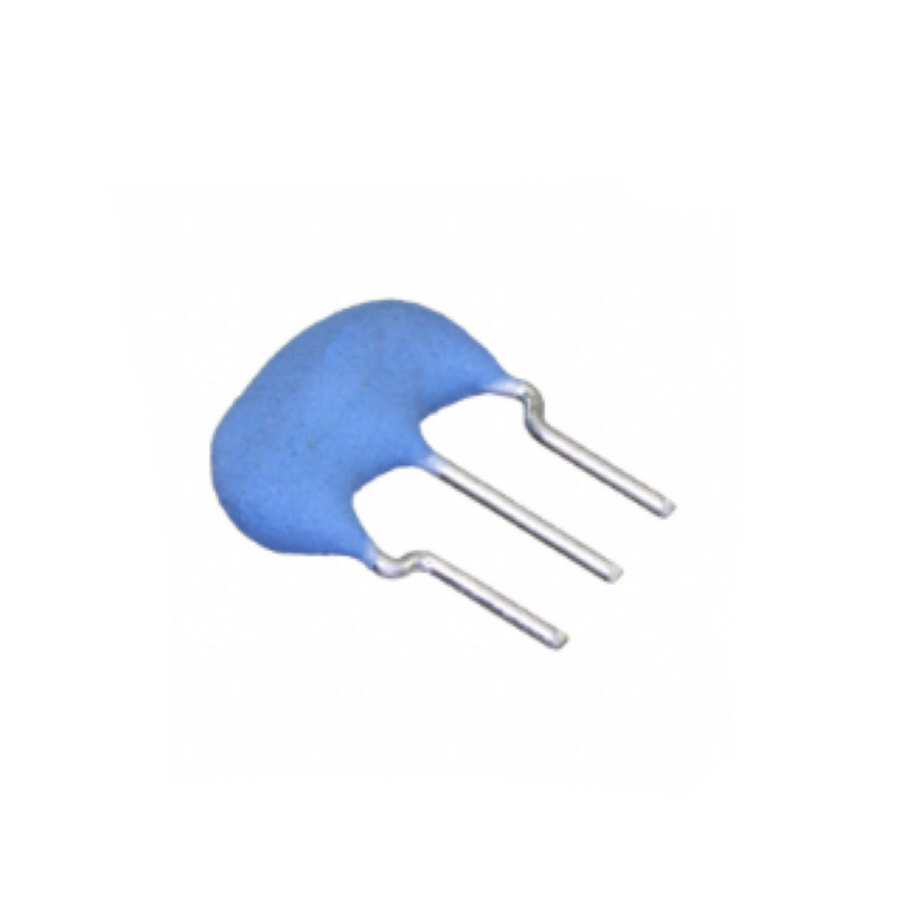

Resonators Radial - 3 Leads Through Hole Frequency:8 MHz Frequency Tolerance:0.5 % Frequency Stability:2000 ppm 47 pF -20 °C 80 °C
| Parameter | Value |
|---|---|
| Packaging | Bulk |
| Frequency | 8 MHz |
| Load Capacitance | 47 pF |
| Mounting Style | Through Hole |
| rohs status | Compliant |
| Capacitance | 47 pF |
| Tolerance | 0.5 % |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 80 °C |
| RoHS | Compliant |
| ESR (Equivalent Series Resistance) | 25 Ω |
| Frequency Tolerance | 0.5 % |
| Features | Built in Capacitor |
| Frequency Stability | 2000 ppm |
| Impedance | 25 Ω |
Stock: 1427
Distributors
pcbx
pcbxUnit Price$0.12482
Ext.Price$0.12482
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12482 | $0.12482 |
| 10 | $0.10857 | $1.08570 |
| 50 | $0.09832 | $4.91600 |
| 100 | $0.09490 | $9.49000 |
| 500 | $0.08515 | $42.57500 |
| 1000 | $0.08446 | $84.46000 |
| 3000 | $0.07624 | $228.72000 |
| 5000 | $0.06882 | $344.10000 |
| 10000 | $0.06763 | $676.30000 |
