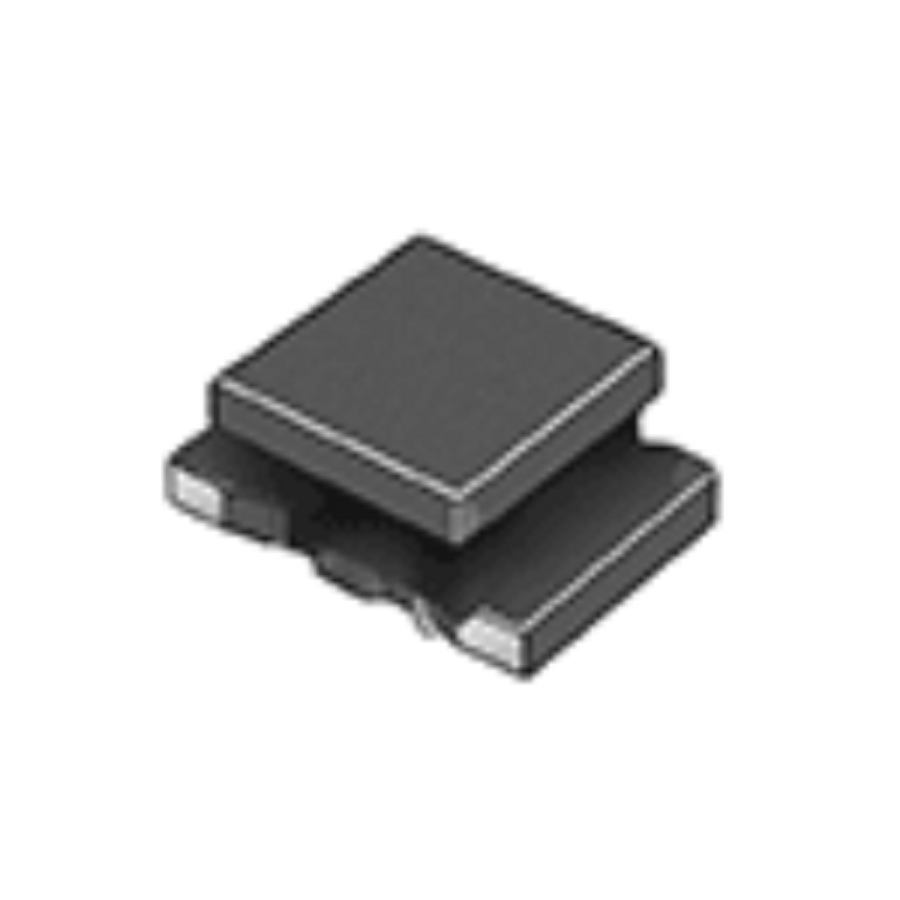

DLW5ATN112MQ2L
Manufacturer:
Murata
Mfr.Part #:
DLW5ATN112MQ2L
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:2 A Number of Lines:2 1.1 kΩ 56 mΩ
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Tolerance | 40 % |
| Length | 5 mm |
| Width | 3.6 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 2.2 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Impedance | 1.1 kΩ |
| Type | Common Mode Choke Coil |
| DC Resistance (DCR) | 56 mΩ |
| Max Current Rating | 2 A |
| Number of Lines | 2 |
Stock: 1779
Distributors
pcbx
pcbxUnit Price$0.55057
Ext.Price$0.55057
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55057 | $0.55057 |
| 10 | $0.45140 | $4.51400 |
| 25 | $0.39327 | $9.83175 |
| 50 | $0.38199 | $19.09950 |
| 100 | $0.37104 | $37.10400 |
| 300 | $0.33888 | $101.66400 |
| 500 | $0.30951 | $154.75500 |
| 1000 | $0.28269 | $282.69000 |
| 3000 | $0.25819 | $774.57000 |
