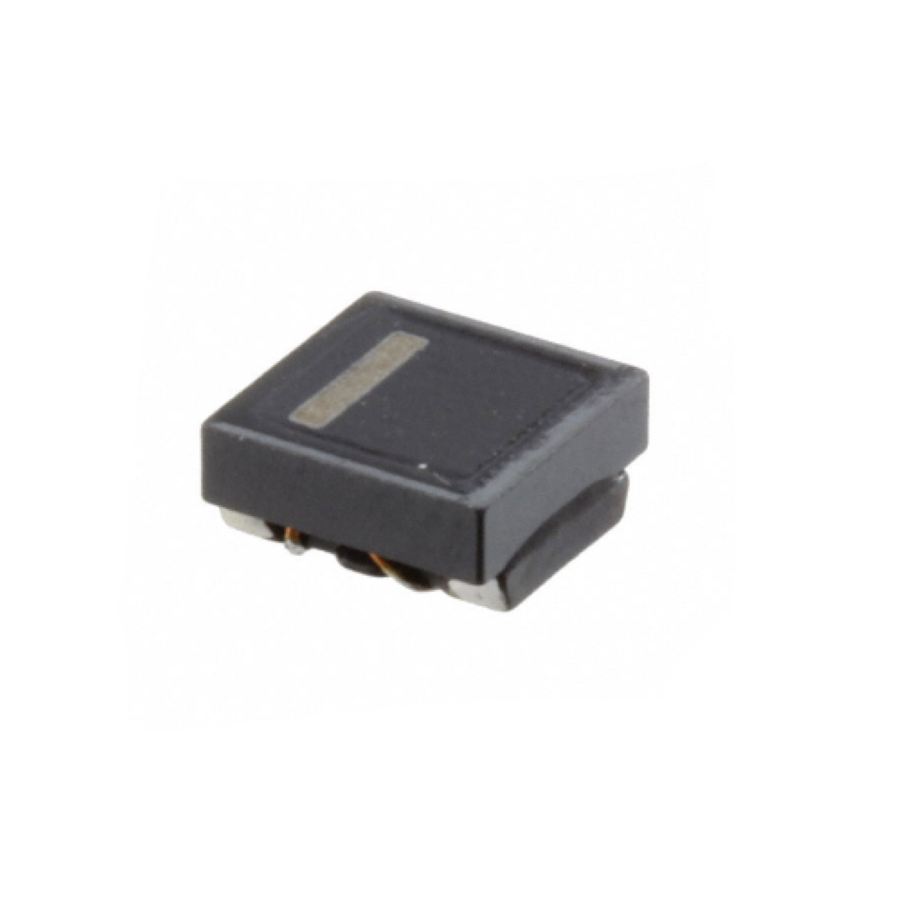

DLW5BTM102TQ2L
Manufacturer:
Murata
Mfr.Part #:
DLW5BTM102TQ2L
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:2.5 A Number of Lines:2 1 kΩ 34 mΩ
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 5 mm |
| Min Operating Temperature | -40 °C |
| Resistance | 1 kΩ |
| Height | 2.5 mm |
| Lead Free | Lead Free |
| RoHS | Non-Compliant |
| Impedance | 1 kΩ |
| Test Frequency | 100 MHz |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Core Material | Ferrite |
| RMS Current (Irms) | 2.5 A |
| Series Resistance | 34 mΩ |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Number of Lines | 2 |
| Max Operating Temperature | 105 °C |
| Packaging | Reel |
| DC Resistance (DCR) | 34 mΩ |
| Voltage Rating (DC) | 50 V |
| Max Current Rating | 2.5 A |
| Type | Power Line |
Stock: 509
Distributors
pcbx
pcbxUnit Price$0.68515
Ext.Price$0.68515
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68515 | $0.68515 |
| 10 | $0.57053 | $5.70530 |
| 25 | $0.53182 | $13.29550 |
| 50 | $0.49574 | $24.78700 |
| 100 | $0.46211 | $46.21100 |
