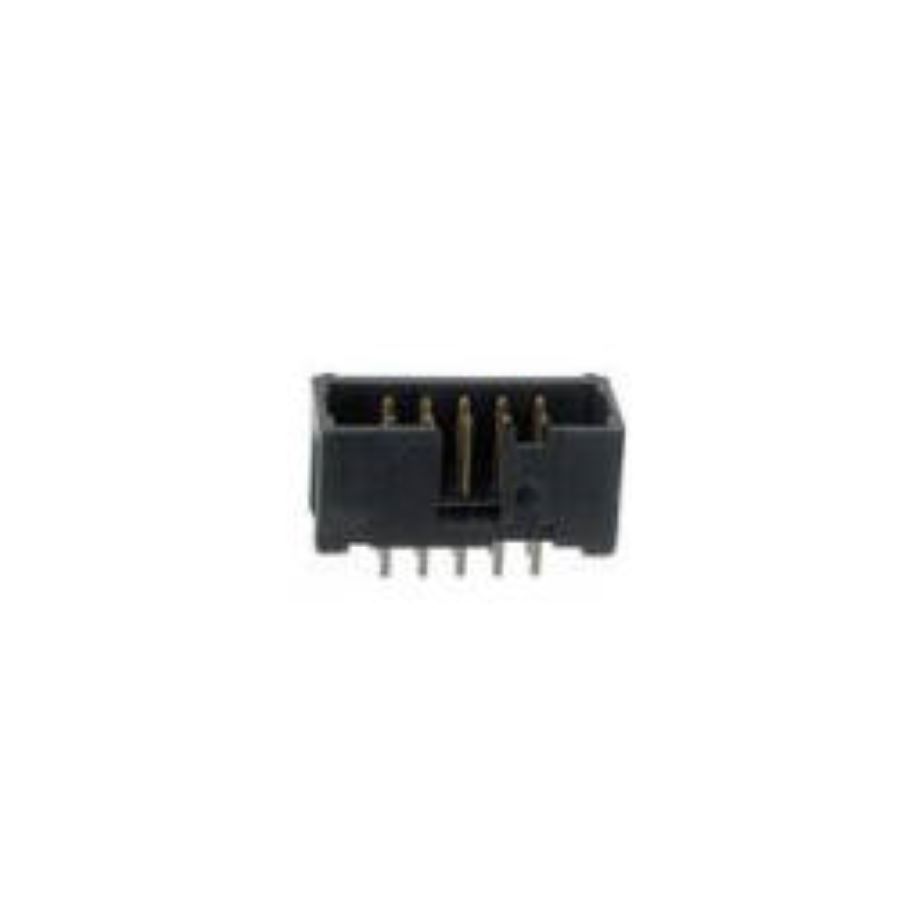

N2510-6002RB
Manufacturer:
3M
Mfr.Part #:
N2510-6002RB
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:10 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.02 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Number of Pins | 10 |
| Height | 9.91 mm |
| Packaging | Tray |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 8.59 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper, Gold |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Max Current Rating | 1.75 A |
| Working Voltage | 350 V |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 10 |
| Connector Type | Male Pin |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polychlorinated |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.1722 mm |
| Mating Post Length | 6.17 mm |
| Termination Post Length | 2.84 mm |
