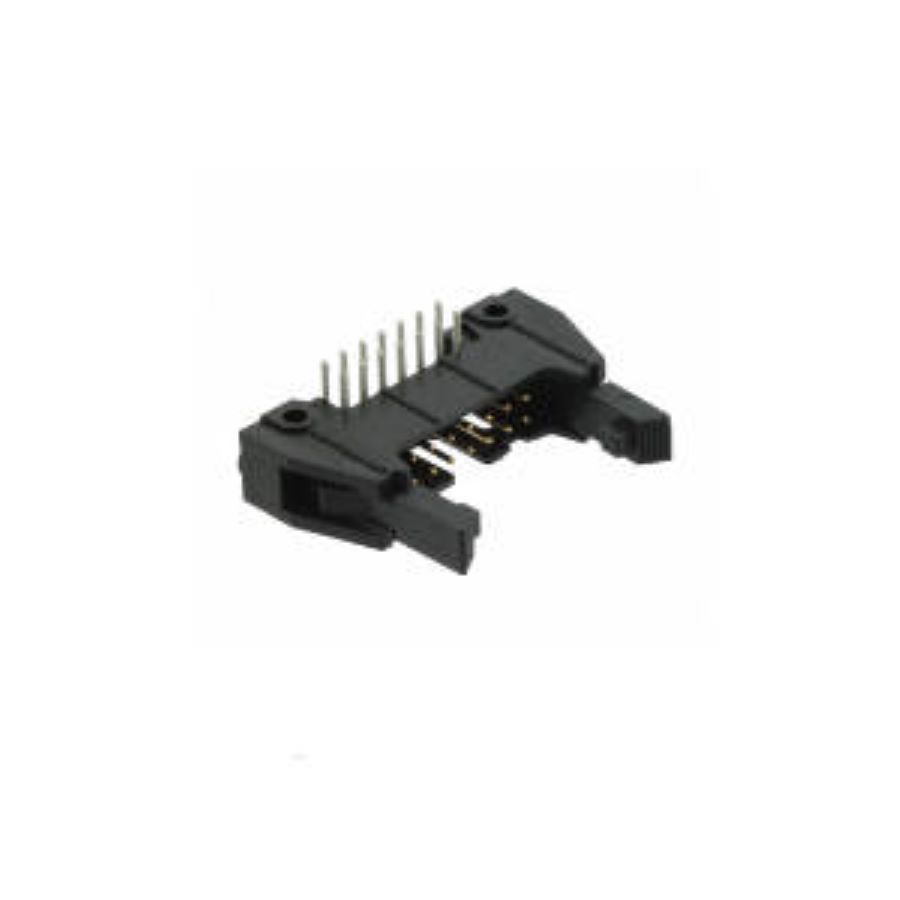

N3314-5302RB
Manufacturer:
3M
Mfr.Part #:
N3314-5302RB
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Length | 37.21 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Number of Pins | 14 |
| Packaging | Reel |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 27.2 mm |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 2 A |
| Working Voltage | 350 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 14 |
| Hole Diameter | 890 µm |
| Number of Poles | 14 |
| Connector Type | Male Pin |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Mating Post Length | 6.2 mm |
| Termination Post Length | 2.84 mm |
Stock: 1345
Distributors
pcbx
pcbxUnit Price$1.87706
Ext.Price$1.87706
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.87706 | $1.87706 |
| 10 | $1.59486 | $15.94860 |
| 25 | $1.50913 | $37.72825 |
| 50 | $1.42801 | $71.40050 |
| 100 | $1.35125 | $135.12500 |
| 300 | $1.27861 | $383.58300 |
| 500 | $1.20988 | $604.94000 |
| 1000 | $1.14484 | $1144.84000 |
| 3000 | $1.08330 | $3249.90000 |
| 5000 | $1.02507 | $5125.35000 |
