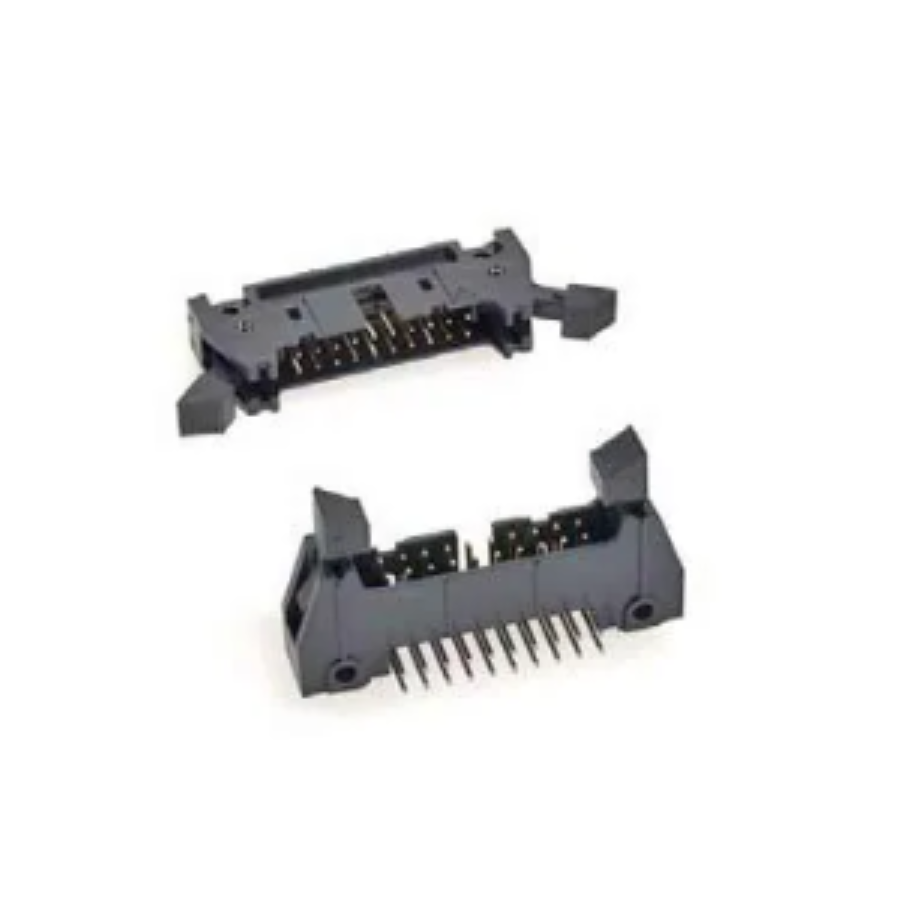

N3314-6303RB
Manufacturer:
3M
Mfr.Part #:
N3314-6303RB
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 37.21 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 27.2 mm |
| Packaging | Reel |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 8.6 mm |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 3.94 mm |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 14 |
| Connector Type | Male Pin |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polychlorinated |
| Fastening Type | Latch |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Contact Gender | Male |
| Mating Post Length | 6.2 mm |
| Termination Post Length | 3.94 mm |
