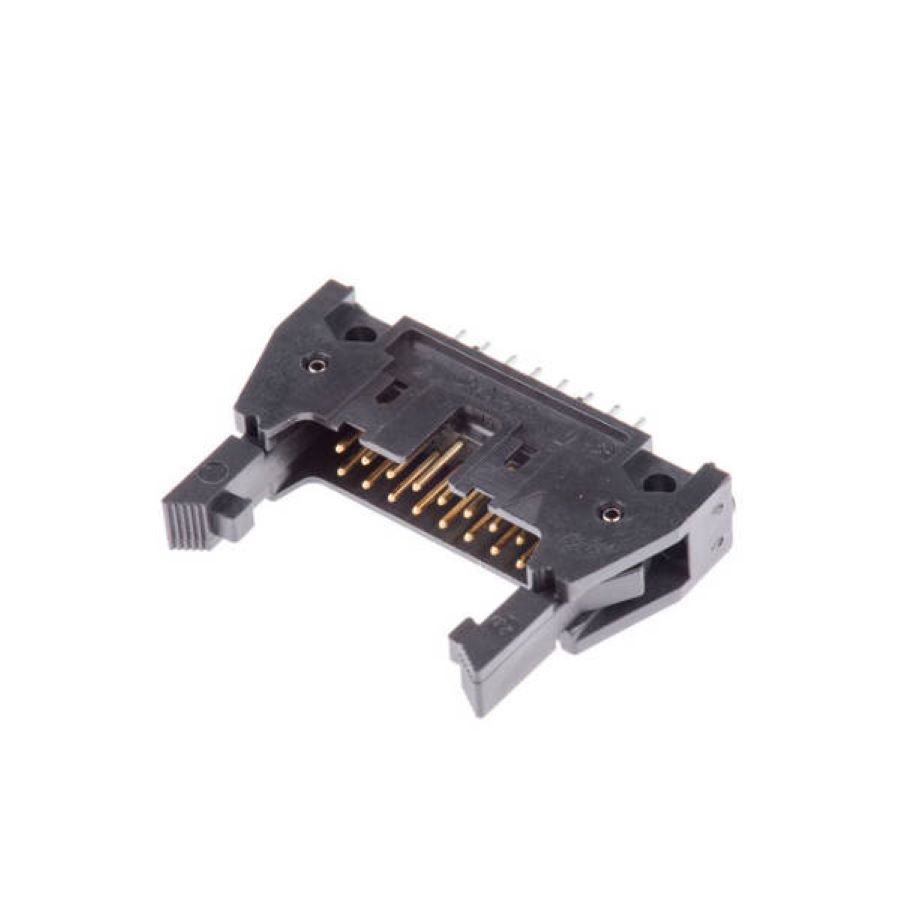

N3408-6302RB
Manufacturer:
3M
Mfr.Part #:
N3408-6302RB
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:16 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Length | 39.75 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Number of Pins | 16 |
| Height | 27.2 mm |
| Packaging | Reel |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 8.6 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.84 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 2 A |
| Working Voltage | 350 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 16 |
| Hole Diameter | 890 µm |
| Number of Poles | 16 |
| Connector Type | Male Pin |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polychlorinated |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Contact Gender | Male |
| Mating Post Length | 6.2 mm |
| Termination Post Length | 2.84 mm |
Stock: 1201
Distributors
pcbx
pcbxUnit Price$2.08361
Ext.Price$2.08361
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.08361 | $2.08361 |
| 10 | $1.77008 | $17.70080 |
| 25 | $1.67493 | $41.87325 |
| 50 | $1.58489 | $79.24450 |
| 100 | $1.49969 | $149.96900 |
| 300 | $1.41907 | $425.72100 |
| 500 | $1.34279 | $671.39500 |
| 1000 | $1.27061 | $1270.61000 |
| 3000 | $1.20231 | $3606.93000 |
| 5000 | $1.13765 | $5688.25000 |
