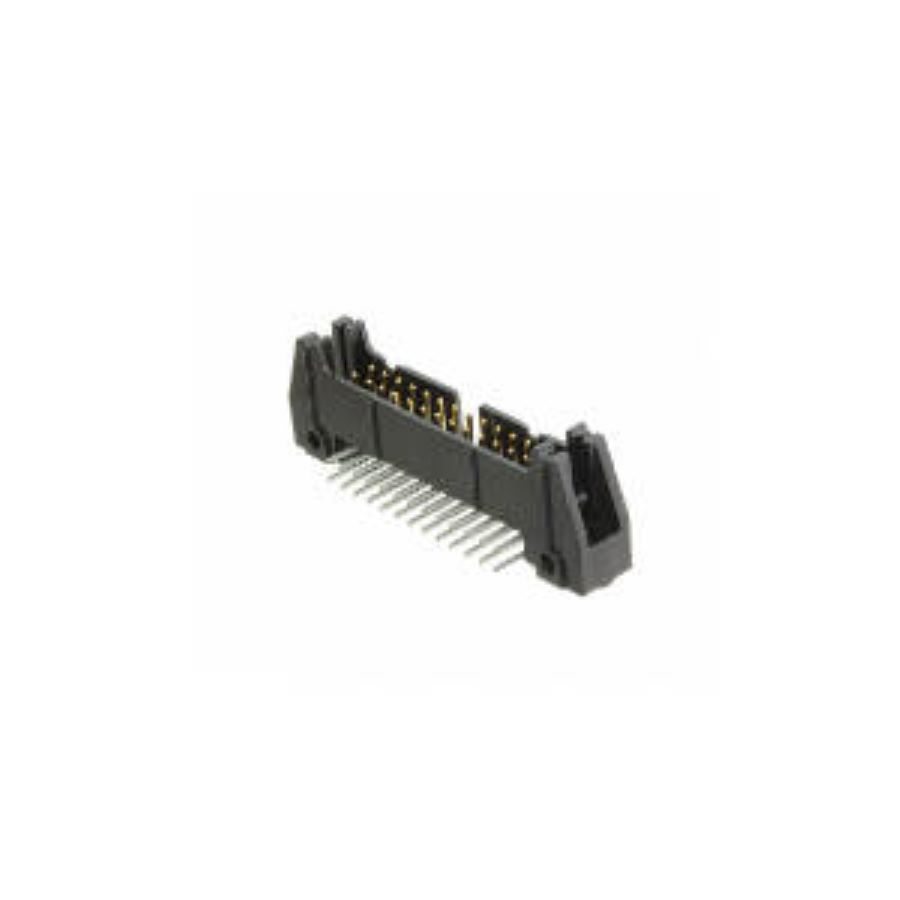

N3429-5002RB
Manufacturer:
3M
Mfr.Part #:
N3429-5002RB
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:26 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 52.45 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Depth | 17.3 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 1.75 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Right Angle |
| Color | Beige |
| Gender | Male |
| Number of Contacts | 26 |
| Connector Type | Male Pin |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Insulation Material | Polyester |
| Housing Material | Polyester |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Packaging | Reel |
Stock: 632
Distributors
pcbx
pcbxUnit Price$2.84699
Ext.Price$2.84699
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.84699 | $2.84699 |
| 10 | $2.41953 | $24.19530 |
| 25 | $2.28949 | $57.23725 |
| 50 | $2.16644 | $108.32200 |
| 100 | $2.05000 | $205.00000 |
| 300 | $1.93982 | $581.94600 |
| 500 | $1.83556 | $917.78000 |
| 1000 | $1.74801 | $1748.01000 |
