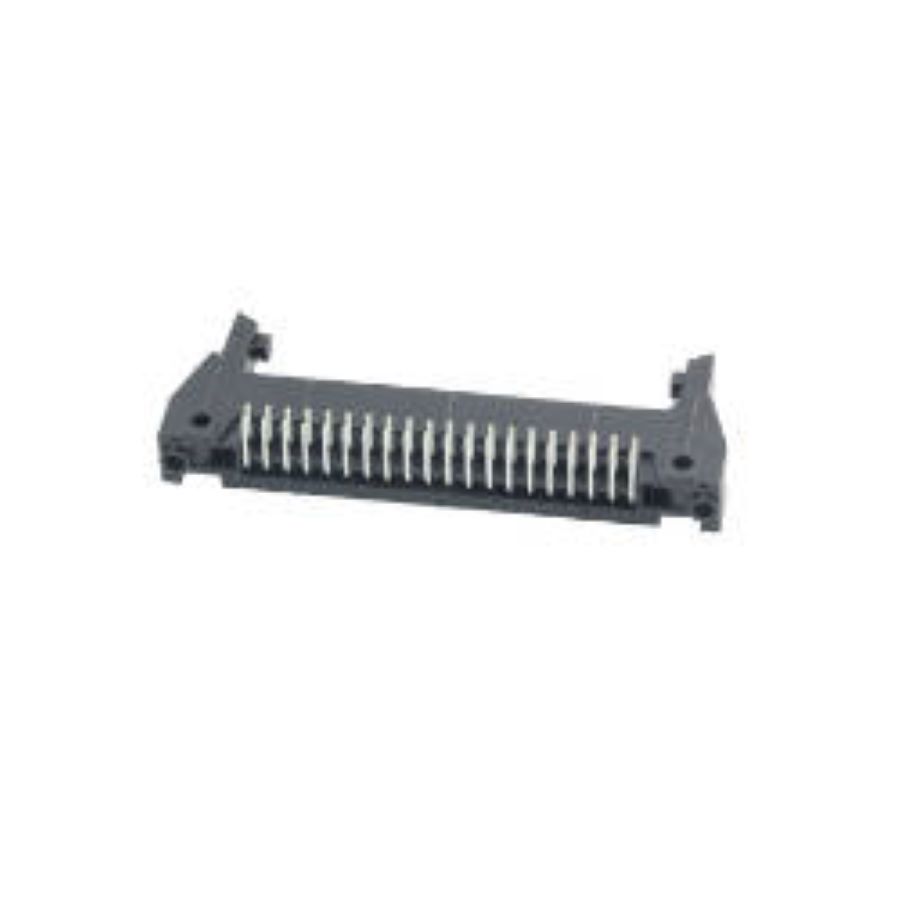

N3432-5302RB
Manufacturer:
3M
Mfr.Part #:
N3432-5302RB
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:40 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 350 V |
| Length | 70.23 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 350 V |
| Number of Pins | 40 |
| Height | 8.6 mm |
| Packaging | Bulk |
| Depth | 27.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Max Current Rating | 2 A |
| Working Voltage | 350 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Male |
| Number of Contacts | 40 |
| Hole Diameter | 890 µm |
| Number of Poles | 40 |
| Connector Type | Male Pin |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polychlorinated |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| Mating Post Length | 6.2 mm |
| Termination Post Length | 2.84 mm |
