N7E50-7516PG-20
Manufacturer:
3M
Mfr.Part #:
N7E50-7516PG-20
Datasheet:
Description:

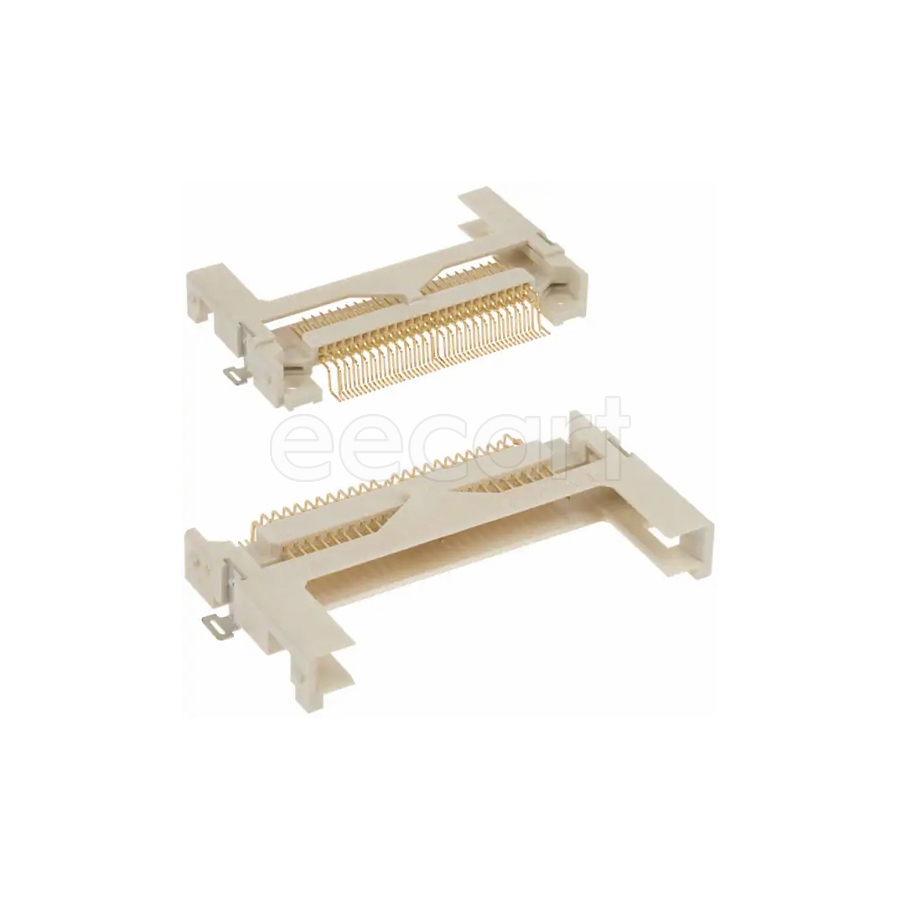

Memory Connectors SMD/SMT Number of Positions:50 Connector, Socket
| Parameter | Value |
|---|---|
| Length | 46.6 mm |
| Width | 26.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 26.5 mm |
| Packaging | Bulk |
| Depth | 26.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 635 µm |
| Current Rating | 500 mA |
| Max Current Rating | 500 mA |
| Orientation | Right Angle |
| Color | Beige |
| Gender | Male |
| Number of Contacts | 50 |
| Body Material | Liquid Crystal Polymer, Polymer |
| Connector Type | Connector, Socket |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Housing Material | Polyester |
| Housing Color | Beige |
| RoHS | Compliant |
Stock: 68
Distributors
pcbx
pcbxUnit Price$7.83963
Ext.Price$7.83963
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.83963 | $7.83963 |
| 10 | $6.66111 | $66.61110 |
| 25 | $6.24419 | $156.10475 |
| 50 | $5.94598 | $297.29900 |
| 100 | $5.66222 | $566.22200 |
| 300 | $5.24015 | $1572.04500 |
| 500 | $5.05481 | $2527.40500 |
| 1000 | $4.81389 | $4813.89000 |
