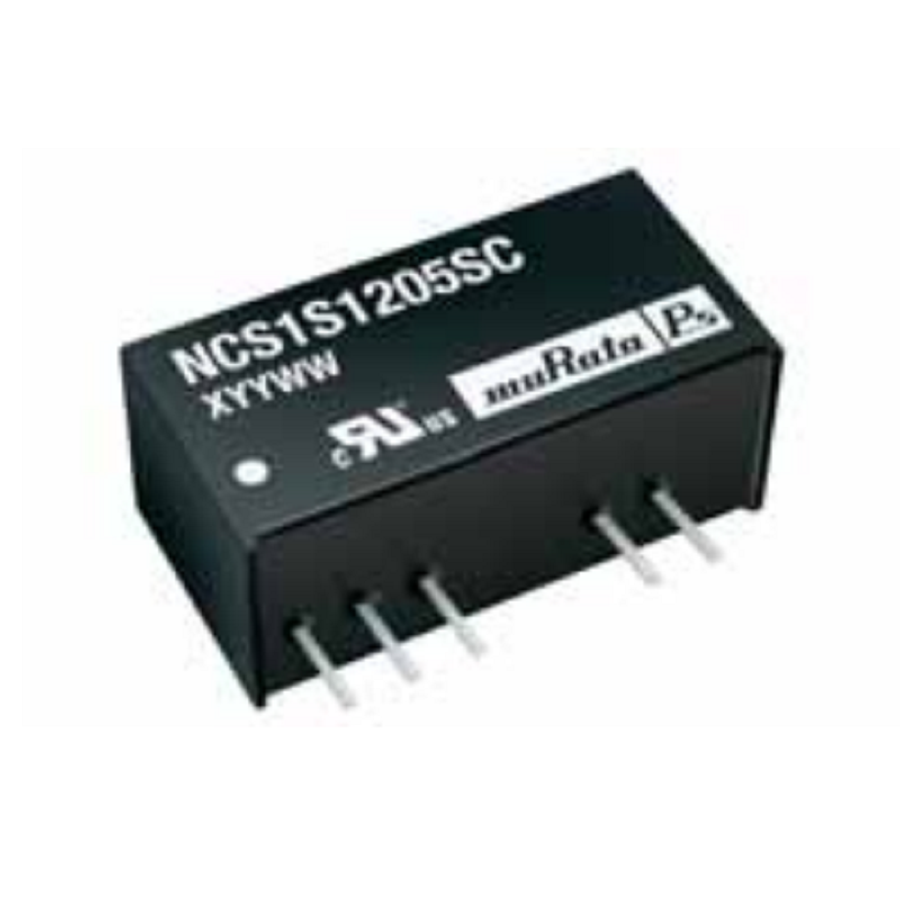

NCS1S2405SC
Manufacturer:
Murata
Mfr.Part #:
NCS1S2405SC
Datasheet:
Description:
DC to DC Converters SIP-7 Module, 4 Leads Through Hole Nominal Input Voltage:24 V Min Input Voltage:9 V Max Input Voltage:36 V 82 %
| Parameter | Value |
|---|---|
| Length | 21.9 mm |
| Width | 8.2 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 11.3 mm |
| Packaging | Tube |
| Depth | 21.87 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 3.200009 g |
| Features | SCP |
| Min Input Voltage | 9 V |
| Output Current | 200 mA |
| Output Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Max Power Dissipation | 1 W |
| Max Output Current | 200 mA |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1 kV |
| Output Power | 1 W |
| Current - Output 1 | 200 mA |
| Efficiency | 82 % |
| Voltage - Output 1 | 5 V |
| Max Input Voltage (DC) | 36 V |
| Nominal Output Voltage | 5 V |
| Nominal Input Voltage | 24 V |
| Max Output Power | 1 W |
| Min Input Voltage (DC) | 9 V |
| Schedule B | 8542390000 |
| Output Current-Channel 1 | 200 mA |
| Output Voltage-Channel 1 | 5 V |
Out of Stock
