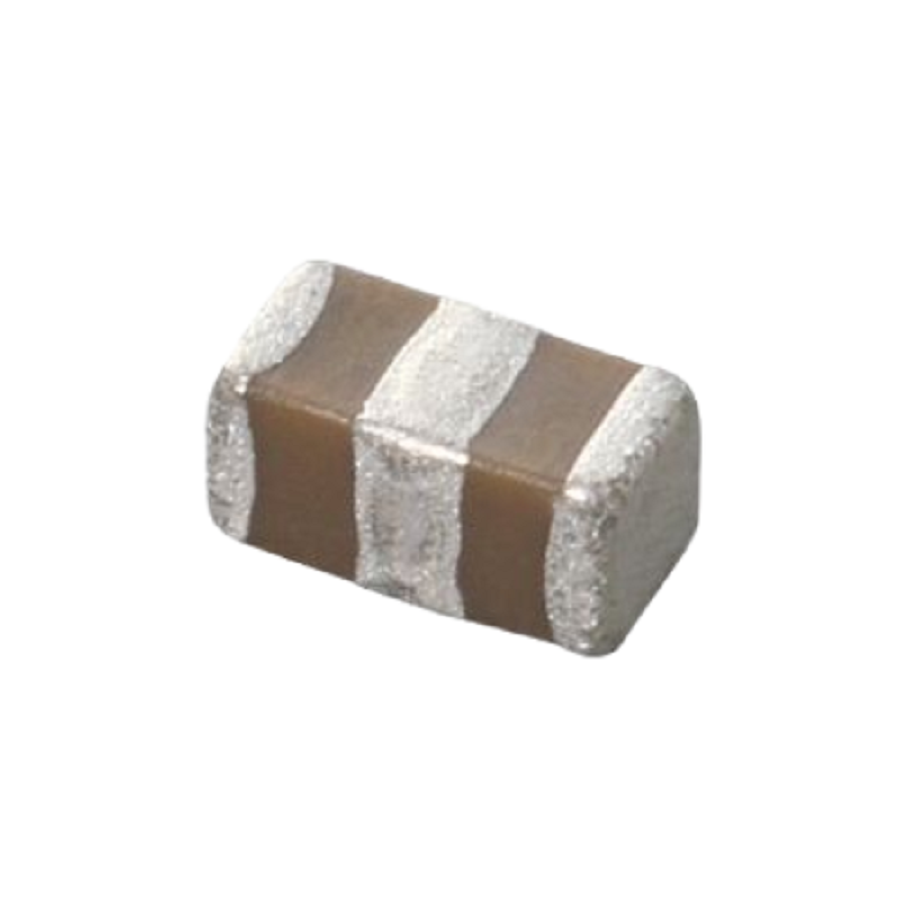

NFM18PC225B1A3D
Manufacturer:
Murata
Mfr.Part #:
NFM18PC225B1A3D
Datasheet:
Description:
EMI Feedthrough Filters 0603(1608 Metric) SMD/SMT 2.2 µF 4 A 10 mΩ 20 %
| Parameter | Value |
|---|---|
| Capacitance | 2.2 µF |
| Voltage Rating (DC) | 10 V |
| Tolerance | 20 % |
| Length | 1.6 mm |
| Width | 800 µm |
| Termination | Flat |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Height | 800 µm |
| Packaging | Reel |
| Voltage Rating | 10 V |
| Depth | 800 µm |
| Thickness | 0.8 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 200 MΩ |
| Voltage | 10 V |
| REACH SVHC | No SVHC |
| Current | 4 A |
| Current Rating | 4 A |
| DC Resistance (DCR) | 10 mΩ |
| Max Current Rating | 4 A |
| Max Voltage Rating (DC) | 10 V |
| Manufacturer Lifecycle Status | IN PRODUCTION (Last Updated: 6 months ago) |
