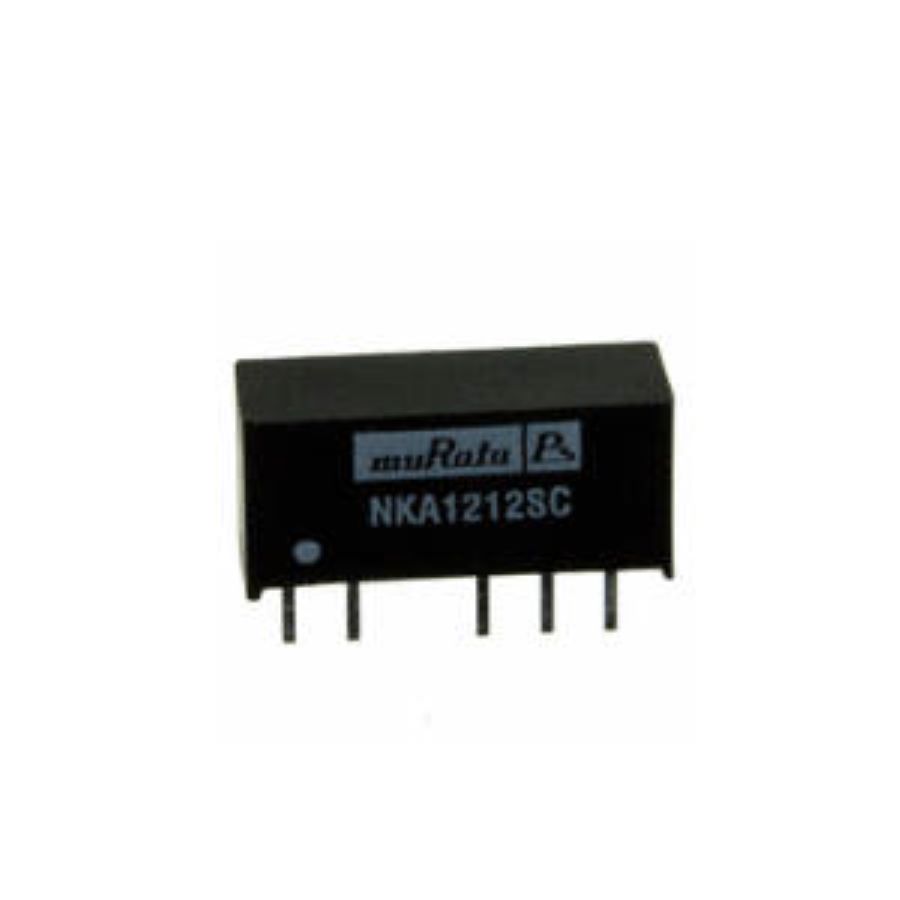

NKA1212SC
Manufacturer:
Murata
Mfr.Part #:
NKA1212SC
Datasheet:
Description:
DC to DC Converters SIP-6 Module Through Hole Nominal Input Voltage:12 V Min Input Voltage:10.8 V Max Input Voltage:13.2 V 81 %
| Parameter | Value |
|---|---|
| Length | 16.5 mm |
| Width | 15.95 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Power Rating | 1 W |
| Height | 7.55 mm |
| Depth | 5.95 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Min Input Voltage | 10.8 V |
| Output Current | 42 mA |
| Output Voltage | 12 V |
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Max Power Dissipation | 1 W |
| Max Output Current | 42 mA |
| Max Input Voltage | 13.2 V |
| Number of Outputs | 2 |
| Isolation Voltage | 3 kV |
| Output Power | 1 W |
| Current - Output 1 | 42 mA |
| Efficiency | 81 % |
| Voltage - Output 1 | 12 V |
| Max Input Voltage (DC) | 13.2 V |
| Nominal Output Voltage | -12 V |
| Nominal Input Voltage | 12 V |
| Max Output Power | 1 W |
| Min Input Voltage (DC) | 10.8 V |
| Current - Output 2 | 42 mA |
| Voltage - Output 2 | -12 V |
| Isolation | Isolated |
| Schedule B | 8542390000 |
| Output Voltage-Channel 1 | 12 V |
| Output Voltage-Channel 2 | -12 V |
| Output Current-Channel 1 | 42 mA |
| Output Current-Channel 2 | 42 mA |
| Packaging | Tube |
Stock: 43
Distributors
pcbx
pcbxUnit Price$4.76188
Ext.Price$4.76188
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.76188 | $4.76188 |
| 10 | $4.70522 | $47.05220 |
| 25 | $4.64891 | $116.22275 |
| 50 | $4.53629 | $226.81450 |
| 100 | $4.31104 | $431.10400 |
| 300 | $4.02634 | $1207.90200 |
| 500 | $3.76044 | $1880.22000 |
| 1000 | $3.52269 | $3522.69000 |
