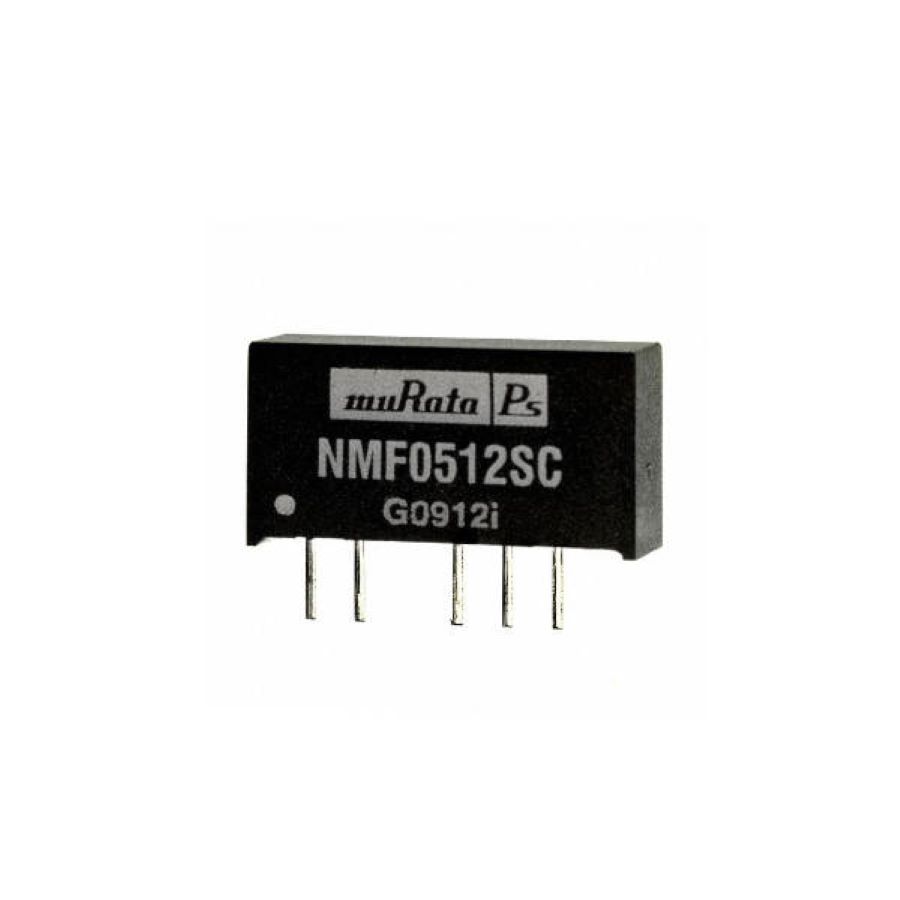

NMF0512SC
Manufacturer:
Murata
Mfr.Part #:
NMF0512SC
Datasheet:
Description:
DC to DC Converters SIP-7 Module, 4 Leads Through Hole Nominal Input Voltage:4.75 V to 5.25 V Min Input Voltage:4.75 V Max Input Voltage:5.25 V 62 %
| Parameter | Value |
|---|---|
| Length | 19.65 mm |
| Width | 10.15 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 5 |
| Power Rating | 1 W |
| Height | 6.15 mm |
| Depth | 19.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Flammability Rating | UL94 V-0 |
| Min Input Voltage | 4.75 V |
| Output Current | 83 mA |
| Output Voltage | 12 V |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Max Power Dissipation | 1 W |
| Max Output Current | 83 mA |
| Max Input Voltage | 5.25 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1 kV |
| Output Power | 1 W |
| Current - Output 1 | 83 mA |
| Efficiency | 62 % |
| Voltage - Output 1 | 12 V |
| Max Input Voltage (DC) | 5.25 V |
| Nominal Output Voltage | 12 V |
| Nominal Input Voltage | 4.75 V to 5.25 V |
| Max Output Power | 1 W |
| Min Input Voltage (DC) | 4.75 V |
| Isolation | Isolated |
| Schedule B | 8542390000 |
| Output Voltage-Channel 1 | 12 V |
| Output Current-Channel 1 | 83 mA |
| Packaging | Tube |
