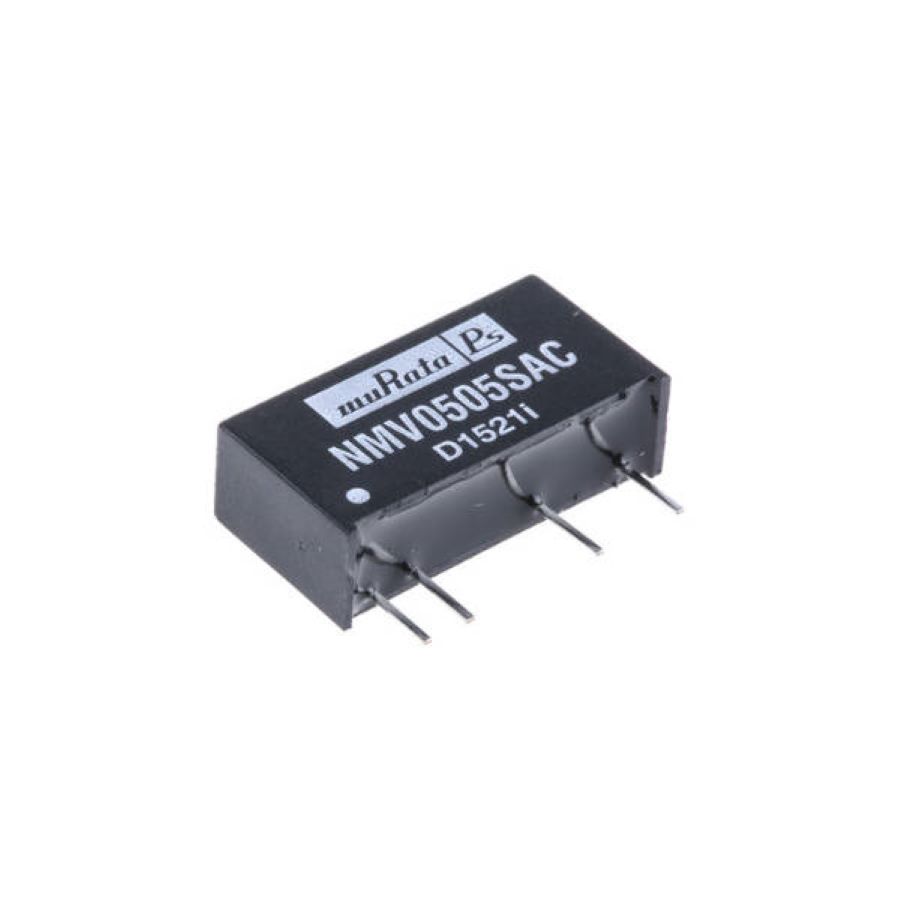

NMV0505SAC
Manufacturer:
Murata
Mfr.Part #:
NMV0505SAC
Datasheet:
Description:
DC to DC Converters 19.50mmL×6.00mmW×10.00mmH Through Hole Nominal Input Voltage:5 V Min Input Voltage:4.5 V Max Input Voltage:5.5 V 68 %
| Parameter | Value |
|---|---|
| Length | 19.5 mm |
| Width | 9.8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Power Rating | 1 W |
| Height | 6.8 mm |
| Packaging | Tube |
| Depth | 6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Flammability Rating | UL94 V-0 |
| Min Input Voltage | 4.5 V |
| Output Current | 200 mA |
| Output Voltage | 5 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Power Dissipation | 1 W |
| Max Output Current | 200 mA |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Isolation Voltage | 3 kV |
| Output Power | 1 W |
| Current - Output 1 | 200 mA |
| Efficiency | 68 % |
| Voltage - Output 1 | 5 V |
| Max Input Voltage (DC) | 5.5 V |
| Nominal Output Voltage | 5 V |
| Nominal Input Voltage | 5 V |
| Max Output Power | 1 W |
| Min Input Voltage (DC) | 4.5 V |
| Isolation | Isolated |
| Schedule B | 8542390000 |
| Output Current-Channel 1 | 200 mA |
| Output Voltage-Channel 1 | 5 V |
Stock: 591
Distributors
pcbx
pcbxUnit Price$4.23606
Ext.Price$4.23606
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.23606 | $4.23606 |
| 10 | $4.18590 | $41.85900 |
| 25 | $4.13583 | $103.39575 |
| 50 | $4.03574 | $201.78700 |
| 100 | $3.83551 | $383.55100 |
| 300 | $3.58318 | $1074.95400 |
| 500 | $3.34747 | $1673.73500 |
| 1000 | $3.13473 | $3134.73000 |
