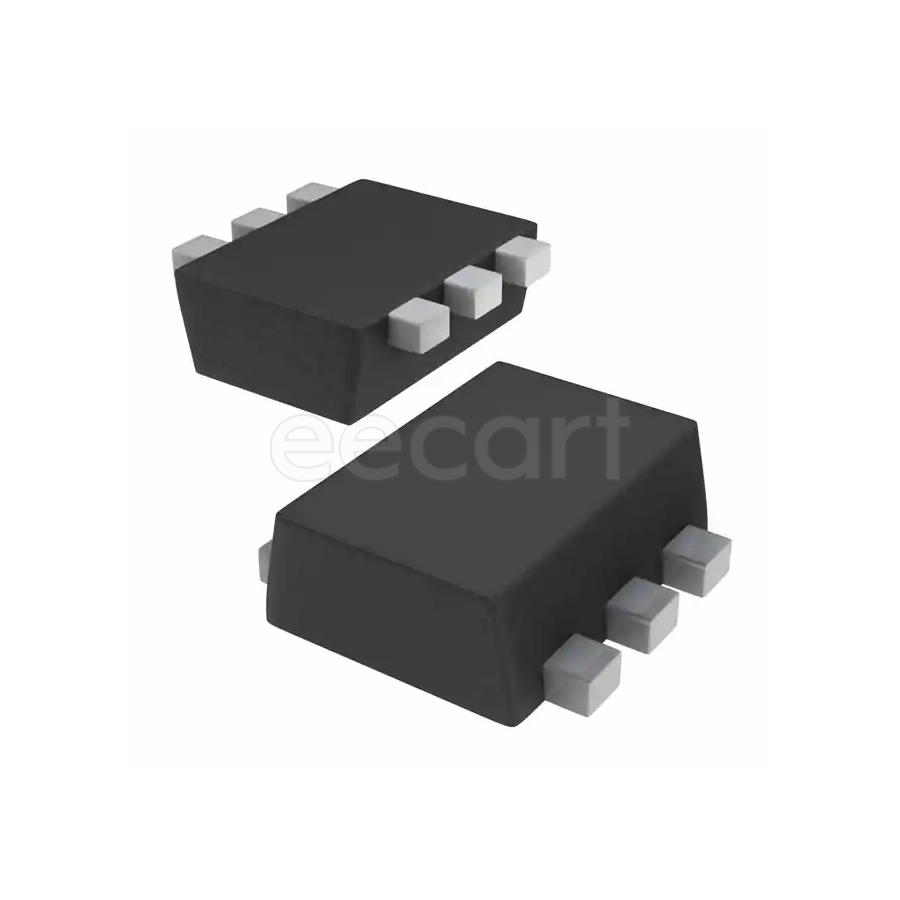

NX3020NAKV,115
Manufacturer:
Nexperia
Mfr.Part #:
NX3020NAKV,115
Datasheet:
Description:
MOSFETs SOT-666 SMD/SMT N-Channel number of channels:2 375 mW 30 V Continuous Drain Current (ID):200 mA 340 pC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Polarity | Dual N-Channel |
| Lifecycle Status | Active |
| Power Dissipation | 375 mW |
| Mounting Style | Surface Mount |
| Number of Channels | 2 |
| operating temperature | 150 °C |
| rohs status | Compliant |
| case package | SOT-666 |
| Input capacitance | 13 pF |
| Continuous Drain Current (ID) | 200 mA |
| Gate Charge | 340 pC |
| Drain to Source Resistance | 4.5 Ω |
| Gate to Source Voltage (Vgs) | -10 V, 10 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Gate to Source Threshold Voltage | 800 mV |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 1196
Distributors
pcbx
pcbxUnit Price$0.26246
Ext.Price$0.26246
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26246 | $0.26246 |
| 10 | $0.15987 | $1.59870 |
| 50 | $0.10773 | $5.38650 |
| 100 | $0.07259 | $7.25900 |
| 500 | $0.06574 | $32.87000 |
| 1000 | $0.05505 | $55.05000 |
| 3000 | $0.04763 | $142.89000 |
| 5000 | $0.04121 | $206.05000 |
| 10000 | $0.03565 | $356.50000 |
