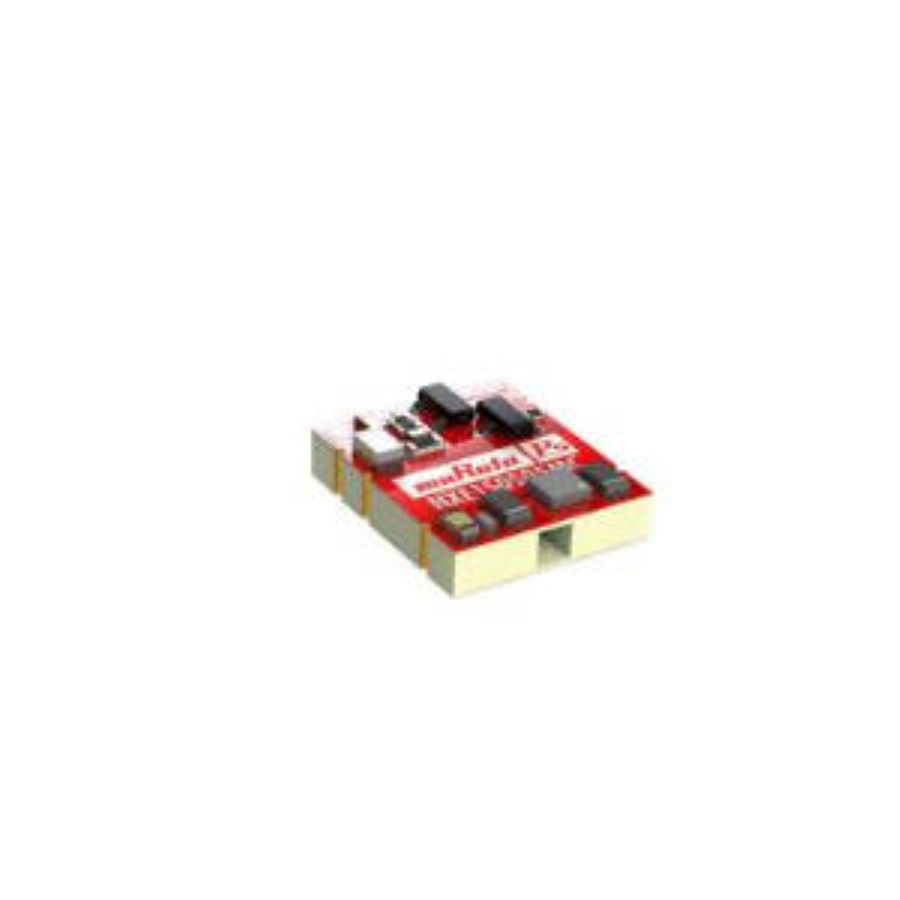

NXE1S0303MC-R7
Manufacturer:
Murata
Mfr.Part #:
NXE1S0303MC-R7
Datasheet:
Description:
DC to DC Converters SMD-14 SMD/SMT Min Input Voltage:2.97 V Max Input Voltage:3.63 V 66 %
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Width | 10.414 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.4 mm |
| Depth | 12.7 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | SCP |
| Min Input Voltage | 2.97 V |
| Output Current | 303 mA |
| Output Voltage | 3.3 V |
| Max Power Dissipation | 1 W |
| Max Output Current | 303 mA |
| Max Input Voltage | 3.63 V |
| Number of Outputs | 1 |
| Isolation Voltage | 3 kV |
| Output Power | 1 W |
| Current - Output 1 | 303 mA |
| Efficiency | 66 % |
| Voltage - Output 1 | 3.3 V |
| Max Input Voltage (DC) | 3.63 V |
| Max Output Power | 1 W |
| Min Input Voltage (DC) | 2.97 V |
| Schedule B | 8542390000 |
| Packaging | Reel |
| Output Voltage-Channel 1 | 3.3 V |
| Output Current-Channel 1 | 303 mA |
Stock: 4133
Distributors
pcbx
pcbxUnit Price$1.90808
Ext.Price$1.90808
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.90808 | $1.90808 |
| 10 | $1.88334 | $18.83340 |
| 25 | $1.86456 | $46.61400 |
| 50 | $1.82078 | $91.03900 |
| 100 | $1.72692 | $172.69200 |
