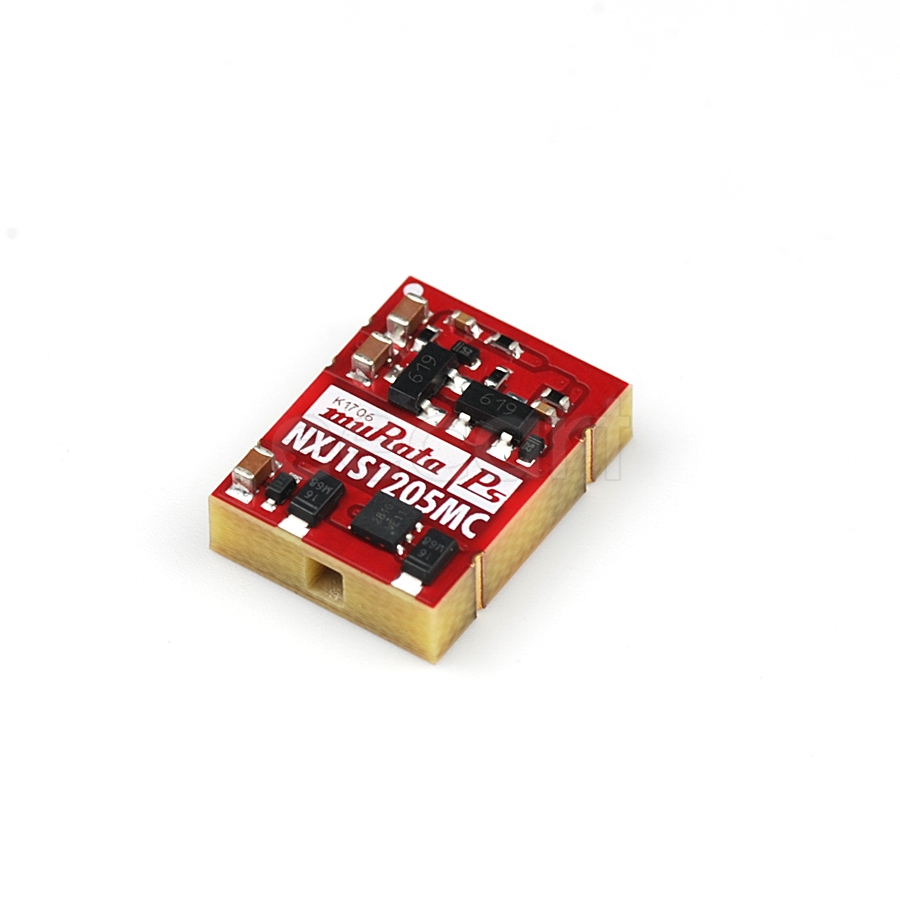

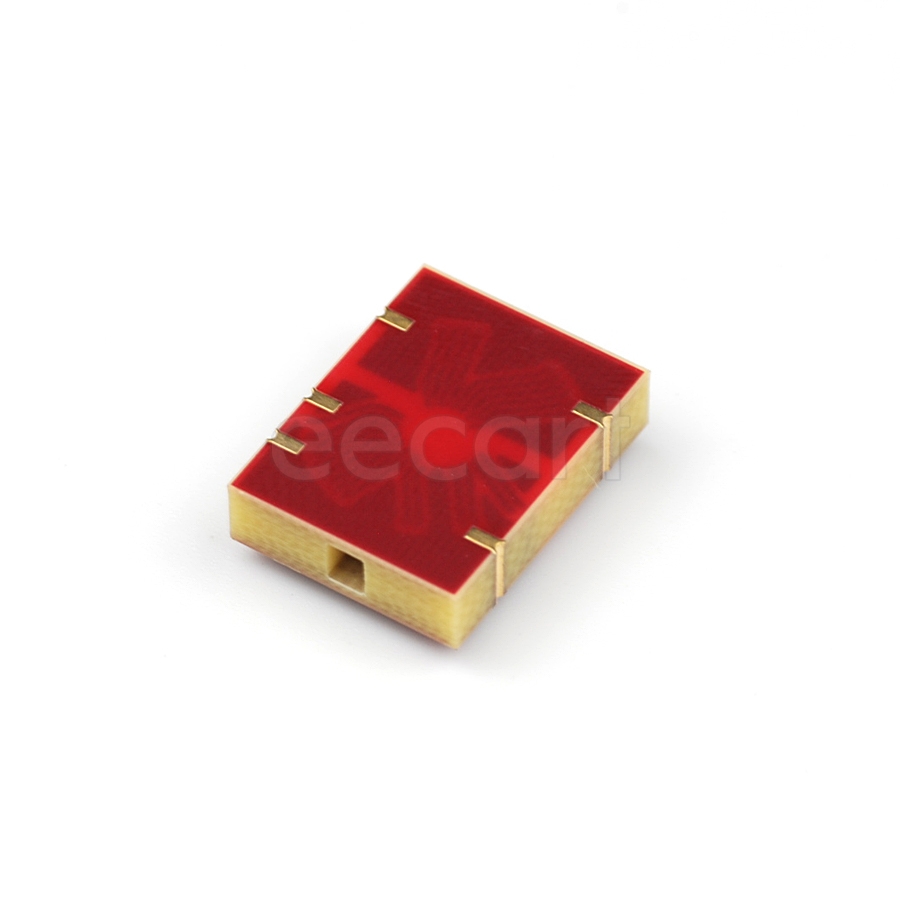

NXJ1S1205MC-R7
Manufacturer:
Murata
Mfr.Part #:
NXJ1S1205MC-R7
Datasheet:
Description:
Board Mount Modules 13.72mmL×10.46mmW×4.16mmH SMD/SMT Current - Output 1:200 mA Voltage - Output 1:5 V 72 %
| Parameter | Value |
|---|---|
| Length | 13.716 mm |
| Width | 10.414 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 1 W |
| Height | 4.318 mm |
| Packaging | Reel |
| Depth | 13.72 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | SCP |
| Min Input Voltage | 10.8 V |
| Max Power Dissipation | 1 W |
| Power Dissipation | 1 W |
| Max Output Current | 200 mA |
| Max Input Voltage | 13.2 V |
| Number of Outputs | 1 |
| Isolation Voltage | 4.2 kV |
| Output Power | 1 W |
| Current - Output 1 | 200 mA |
| Efficiency | 72 % |
| Voltage - Output 1 | 5 V |
| Max Input Voltage (DC) | 13.2 V |
| Max Output Power | 1 W |
| Min Input Voltage (DC) | 10.8 V |
| Schedule B | 8542390000 |
Stock: 33
Distributors
pcbx
pcbxUnit Price$2.22196
Ext.Price$2.22196
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.22196 | $2.22196 |
| 10 | $2.19631 | $21.96310 |
| 25 | $2.17152 | $54.28800 |
| 50 | $2.11510 | $105.75500 |
| 100 | $1.98662 | $198.66200 |
| 300 | $1.86595 | $559.78500 |
| 500 | $1.75260 | $876.30000 |
