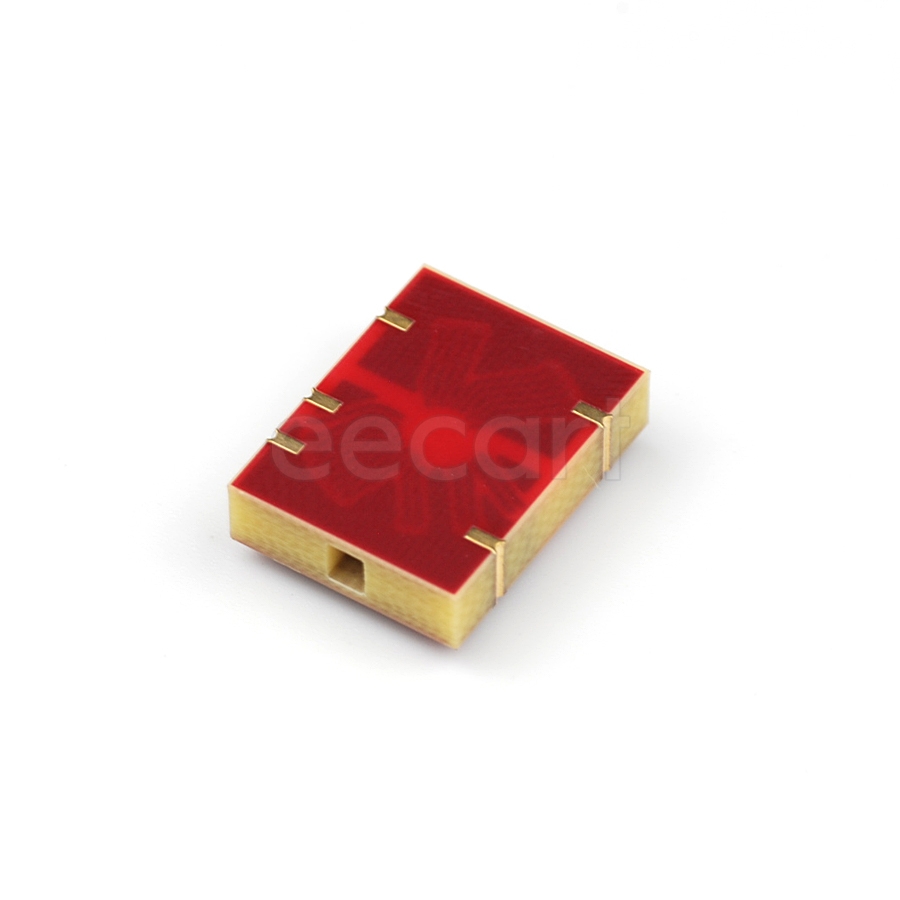

NXJ1S1212MC-R7
Manufacturer:
Murata
Mfr.Part #:
NXJ1S1212MC-R7
Datasheet:
Description:
Board Mount Modules 13.72mmL×10.46mmW×3.11mmH SMD/SMT Current - Output 1:83 mA Voltage - Output 1:12 V 71 %
| Parameter | Value |
|---|---|
| Length | 13.716 mm |
| Width | 10.414 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Power Rating | 1 W |
| Height | 4.318 mm |
| Packaging | Reel |
| Depth | 13.72 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | SCP |
| Min Input Voltage | 10.8 V |
| Output Current | 83 mA |
| Output Voltage | 12 V |
| Max Power Dissipation | 1 W |
| Power Dissipation | 1 W |
| Max Output Current | 83 mA |
| Max Input Voltage | 13.2 V |
| Number of Outputs | 1 |
| Isolation Voltage | 4.2 kV |
| Output Power | 1 W |
| Current - Output 1 | 83 mA |
| Efficiency | 71 % |
| Voltage - Output 1 | 12 V |
| Max Input Voltage (DC) | 13.2 V |
| Max Output Power | 1 W |
| Min Input Voltage (DC) | 10.8 V |
| Schedule B | 8542390000 |
Stock: 6414
Distributors
pcbx
pcbxUnit Price$2.22130
Ext.Price$2.22130
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.22130 | $2.22130 |
| 10 | $2.19619 | $21.96190 |
| 25 | $2.17116 | $54.27900 |
| 50 | $2.11485 | $105.74250 |
| 100 | $2.00848 | $200.84800 |
