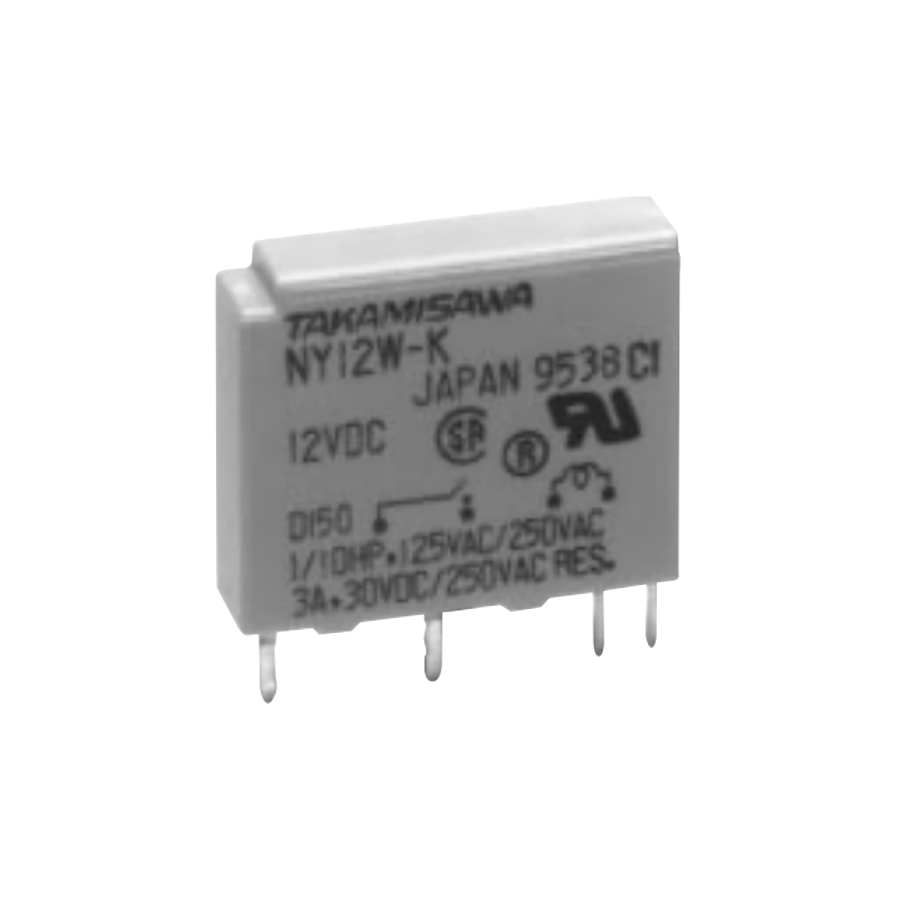

NY12W-K
Manufacturer:
Fujitsu
Mfr.Part #:
NY12W-K
Datasheet:
Description:
Power Relays Through Hole 10 mA 1.2 kΩ 12 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 20.1 mm |
| Width | 5 mm |
| Termination | Solder |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 270 V |
| Number of Pins | 4 |
| Height | 17.5 mm |
| Packaging | Tube |
| Depth | 5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 3.5 g |
| Contact Material(Contact Finish) | Gold, Silver |
| Max Current Rating | 5 A |
| Max Voltage Rating (DC) | 125 V |
| Throw Configuration | SPST |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 270 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 10 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 1.2 kΩ |
| Operate Time | 10 ms |
| Contact Current Rating | 5 A |
| power consumption | 120 mW |
| Switching Voltage | 270 VAC, 125 VDC |
| Coil Voltage (AC) | 12 V |
