74HC123PW,118
Manufacturer:
Nexperia
Mfr.Part #:
74HC123PW,118
Datasheet:
Description:

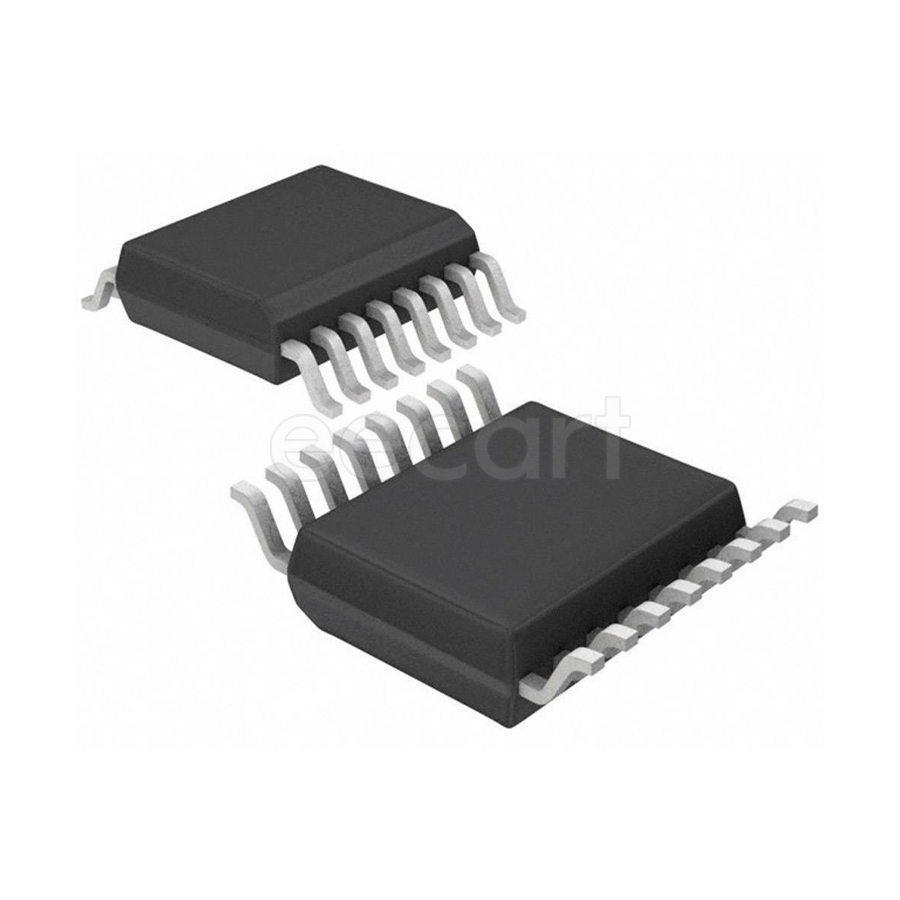

Logic ICs TSSOP-16 SMD/SMT Multivibrator, NAND
| Parameter | Value |
|---|---|
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Radiation Hardening | No |
| Voltage | 5 V |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Elements | 2 |
| Output Current | 25 mA |
| Operating Supply Voltage | 5 V |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 2 V |
| Max Output Current | 25 mA |
| Turn-On Delay Time | 43 ns |
| Quiescent Current | 8 µA |
| Propagation Delay | 385 ns |
| Max Supply Current | 8 µA |
| High Level Output Current | -5.2 mA |
| Low Level Output Current | 5.2 mA |
| Logic Function | Multivibrator, NAND |
| Number of Inputs | 2 |
| Number of Gates | 4 |
| Independent Circuits | 2 |
| Schmitt Trigger Input | Yes |
| RoHS | Compliant |
| Packaging | Reel |
Stock: 1136
Distributors
pcbx
pcbxUnit Price$0.32573
Ext.Price$0.32573
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.32573 | $0.32573 |
| 10 | $0.22827 | $2.28270 |
| 25 | $0.20768 | $5.19200 |
| 50 | $0.18894 | $9.44700 |
| 100 | $0.17611 | $17.61100 |
| 300 | $0.16439 | $49.31700 |
| 500 | $0.15345 | $76.72500 |
| 1000 | $0.14324 | $143.24000 |
| 3000 | $0.13371 | $401.13000 |
| 5000 | $0.12482 | $624.10000 |
