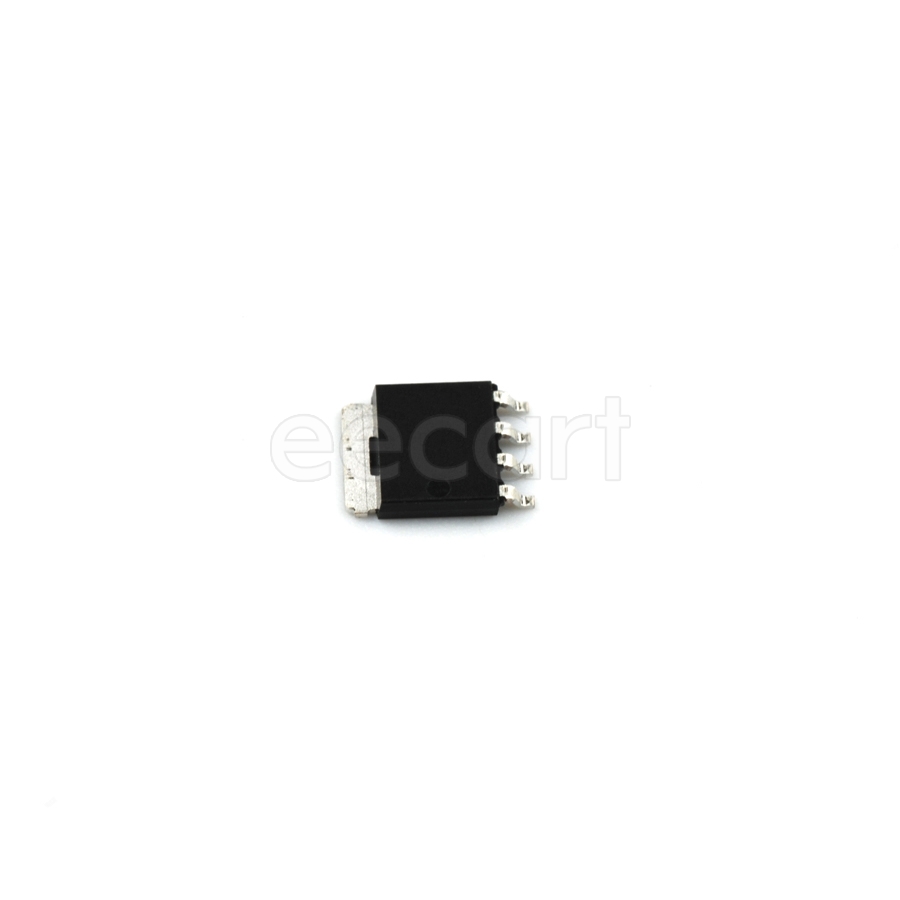

BUK9Y53-100B,115
Manufacturer:
Nexperia
Mfr.Part #:
BUK9Y53-100B,115
Datasheet:
Description:
MOSFETs SOT-669-5 SMD/SMT N-Channel number of channels:1 75 W 100 V Continuous Drain Current (ID):23 A 18 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 75 W |
| Number of Channels | 1 |
| Input capacitance | 2.13 nF |
| Continuous Drain Current (ID) | 23 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 18 nC |
| Drain to Source Resistance | 132 mΩ |
| Gate to Source Voltage (Vgs) | -15 V, 15 V |
| Drain to Source Breakdown Voltage (Vds) | 100 V |
| Gate to Source Threshold Voltage | 2.3 V |
Stock: 7685
Distributors
pcbx
pcbxUnit Price$0.41293
Ext.Price$0.41293
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41293 | $0.41293 |
| 10 | $0.31376 | $3.13760 |
| 25 | $0.30795 | $7.69875 |
| 50 | $0.30225 | $15.11250 |
| 100 | $0.29666 | $29.66600 |
| 300 | $0.29235 | $87.70500 |
| 500 | $0.28811 | $144.05500 |
| 1000 | $0.23083 | $230.83000 |
| 3000 | $0.22314 | $669.42000 |
