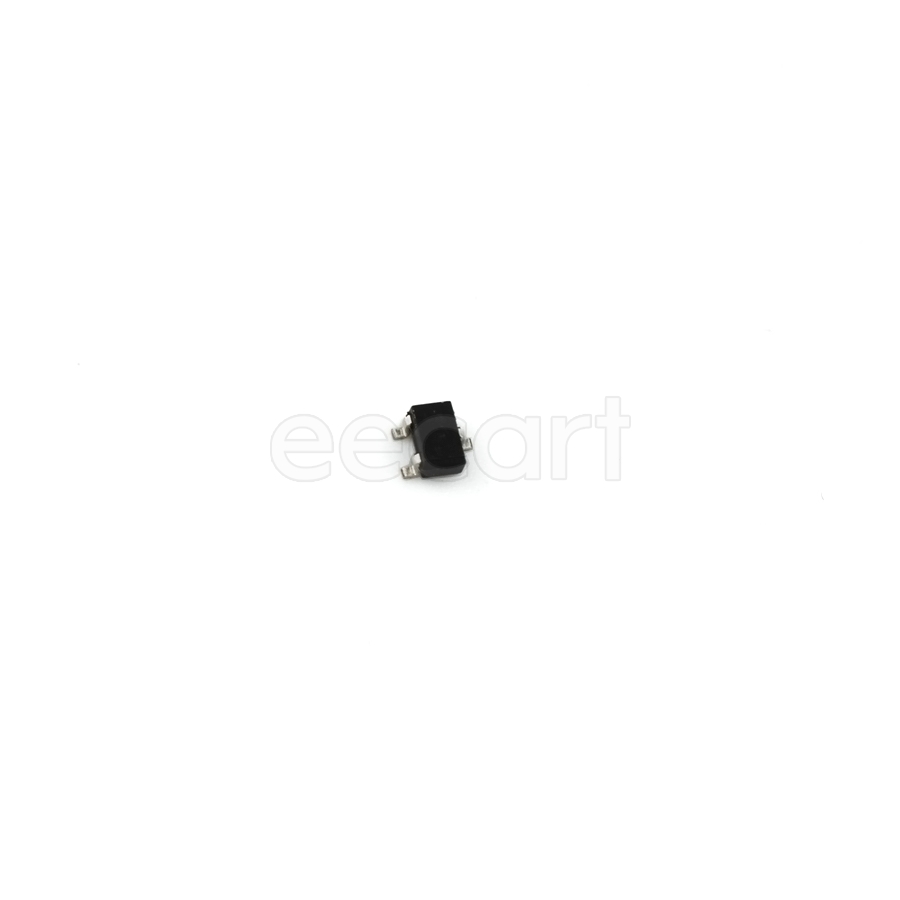

NUP1301U,115
Manufacturer:
Nexperia
Mfr.Part #:
NUP1301U,115
Datasheet:
Description:
ESD and Circuit Protection ICs SOT-323 SMD/SMT Working Voltage:80 V Breakdown Voltage:100 V 220 W 0.6 pF
| Parameter | Value |
|---|---|
| Capacitance | 750 fF |
| Length | 2.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Leakage Current | 100 nA |
| Packaging | Reel |
| Depth | 1.35 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| Contact Plating | Tin |
| Working Voltage | 80 V |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Max Power Dissipation | 200 mW |
| Peak Pulse Current | 11 A |
| Number of Channels | 1 |
| Breakdown Voltage | 100 V |
| Element Configuration | Single |
| Direction(Counting Sequence) | Unidirectional |
| Min Breakdown Voltage | 100 V |
| Reverse Standoff Voltage | 80 V |
| Clamping Voltage | 20 V |
| Peak Pulse Power | 220 W |
| Power Line Protection | No |
| Number of Bidirectional Channels | 1 |
| Max Breakdown Voltage | 100 V |
| Schedule B | 8536300000 |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY (Last Updated: 1 day ago) |
| Voltage ESD Contact | 30 kV |
| Diode Capacitance | 0.6 pF |
Stock: 4582
Distributors
pcbx
pcbxUnit Price$0.07862
Ext.Price$0.07862
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07862 | $0.07862 |
| 10 | $0.07362 | $0.73620 |
| 50 | $0.06893 | $3.44650 |
| 100 | $0.06485 | $6.48500 |
| 500 | $0.06101 | $30.50500 |
| 1000 | $0.05984 | $59.84000 |
| 3000 | $0.05870 | $176.10000 |
| 5000 | $0.05713 | $285.65000 |
