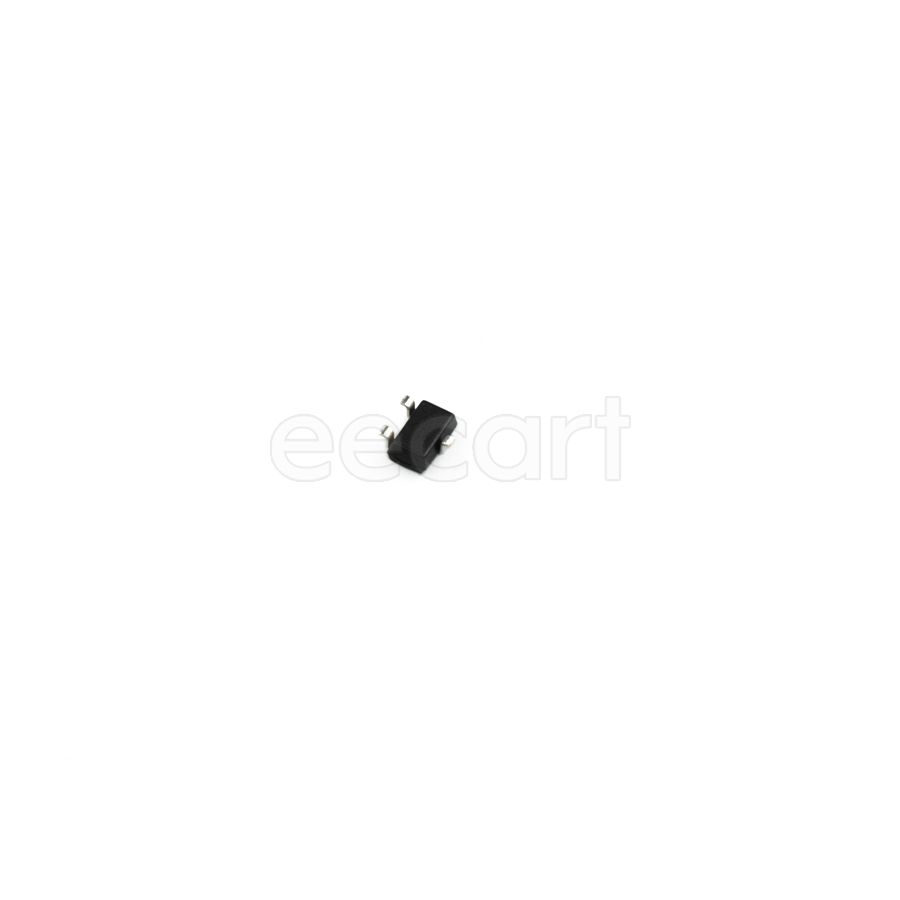

PMST3906,115
Manufacturer:
Nexperia
Mfr.Part #:
PMST3906,115
Datasheet:
Description:
BJTs SC-70-3 SMD/SMT PNP 200 mW Collector Base Voltage (VCBO):40 V Collector Emitter Voltage (VCEO):40 V Emitter Base Voltage (VEBO):6 V
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Length | 2.2 mm |
| Width | 1.35 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 1 mm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | PNP |
| REACH SVHC | No SVHC |
| Frequency | 250 MHz |
| Number of Elements | 1 |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Power Dissipation | 200 mW |
| Power Dissipation | 200 mW |
| Max Collector Current | 200 mA |
| Collector Emitter Breakdown Voltage | 40 V |
| Transition Frequency | 250 MHz |
| Zener Voltage | 36 V |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 40 V |
| Outside Diameter | 2.6 mm |
| Test Current | 8 mA |
| Max Breakdown Voltage | 40 V |
| Gain Bandwidth Product | 250 MHz |
| Zener Current | 500 mA |
| Collector Base Voltage (VCBO) | 40 V |
| Collector Emitter Saturation Voltage | 400 mV |
| Emitter Base Voltage (VEBO) | 6 V |
| hFE Min | 60 |
| Schedule B | 8541210080 |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY (Last Updated: 2 days ago) |
| Max Cutoff Collector Current | 50 nA |
| Transistor Type | PNP |
Stock: 445
Distributors
pcbx
pcbxUnit Price$0.05740
Ext.Price$0.05740
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.05740 | $0.05740 |
| 10 | $0.02870 | $0.28700 |
| 50 | $0.02604 | $1.30200 |
| 100 | $0.02362 | $2.36200 |
| 500 | $0.02143 | $10.71500 |
| 1000 | $0.01944 | $19.44000 |
| 3000 | $0.01764 | $52.92000 |
| 5000 | $0.01621 | $81.05000 |
| 10000 | $0.01490 | $149.00000 |
