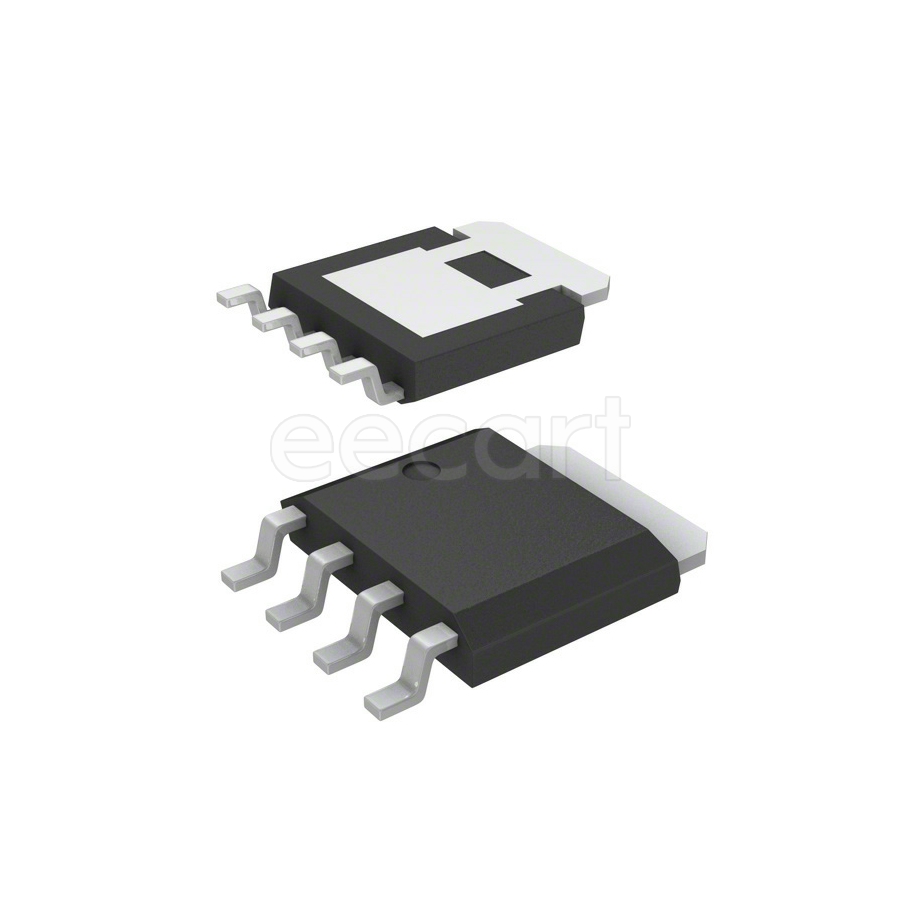

PSMN1R0-25YLDX
Manufacturer:
Nexperia
Mfr.Part #:
PSMN1R0-25YLDX
Datasheet:
Description:
MOSFETs SOT-669-5 SMD/SMT N-Channel number of channels:1 160 W 25 V Continuous Drain Current (ID):100 A 71.8 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Polarity | N-Channel |
| Lifecycle Status | Active |
| Power Dissipation | 160 W |
| Number of Channels | 1 |
| operating temperature | 175 °C |
| rohs status | Compliant |
| Input capacitance | 5.308 nF |
| Continuous Drain Current (ID) | 100 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 71.8 nC |
| Drain to Source Resistance | 890 µΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 25 V |
| Gate to Source Threshold Voltage | 1.2 V |
Stock: 3957
Distributors
pcbx
pcbxUnit Price$0.99514
Ext.Price$0.99514
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.99514 | $0.99514 |
| 10 | $0.74464 | $7.44640 |
| 25 | $0.69331 | $17.33275 |
| 50 | $0.64552 | $32.27600 |
| 100 | $0.60101 | $60.10100 |
| 300 | $0.55339 | $166.01700 |
| 500 | $0.50954 | $254.77000 |
| 1000 | $0.43345 | $433.45000 |
| 3000 | $0.42063 | $1261.89000 |
