PCR1J101MCL1GS
Manufacturer:
Nichicon
Mfr.Part #:
PCR1J101MCL1GS
Datasheet:
Description:

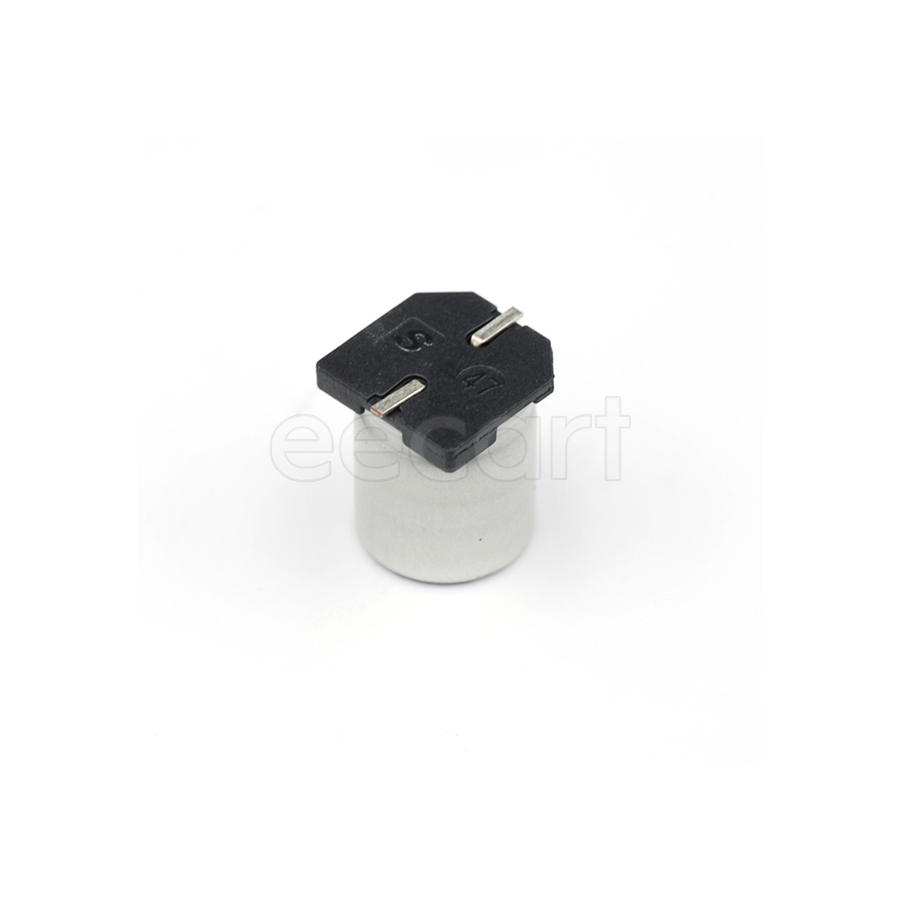

Polymer Capacitors 10.30mmL×10.30mmW SMD/SMT 100 µF 20 % 63 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 63 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 24 mΩ |
| Life (Hours) | 4000 Hours |
| Ripple Current | 3 A |
| Height - Seated (Max) | 12.8 mm |
| Length | 12.7 mm |
| Termination | SMD/SMT |
| Diameter | 10 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.08 % |
| Height | 12.7 mm |
| Voltage Rating | 63 V |
| Depth | 10.3 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 4.6 mm |
| Voltage | 63 V |
| Weight | 1.299996 g |
| Ripple Current (AC) | 3 A |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ratings | AEC-Q200 |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Packaging | Reel |
Stock: 8957
Distributors
pcbx
pcbxUnit Price$2.22794
Ext.Price$2.22794
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.22794 | $2.22794 |
| 10 | $1.33882 | $13.38820 |
| 25 | $1.25698 | $31.42450 |
| 50 | $1.18014 | $59.00700 |
| 100 | $1.10799 | $110.79900 |
| 300 | $1.05065 | $315.19500 |
| 500 | $0.99627 | $498.13500 |
| 1000 | $0.94470 | $944.70000 |
