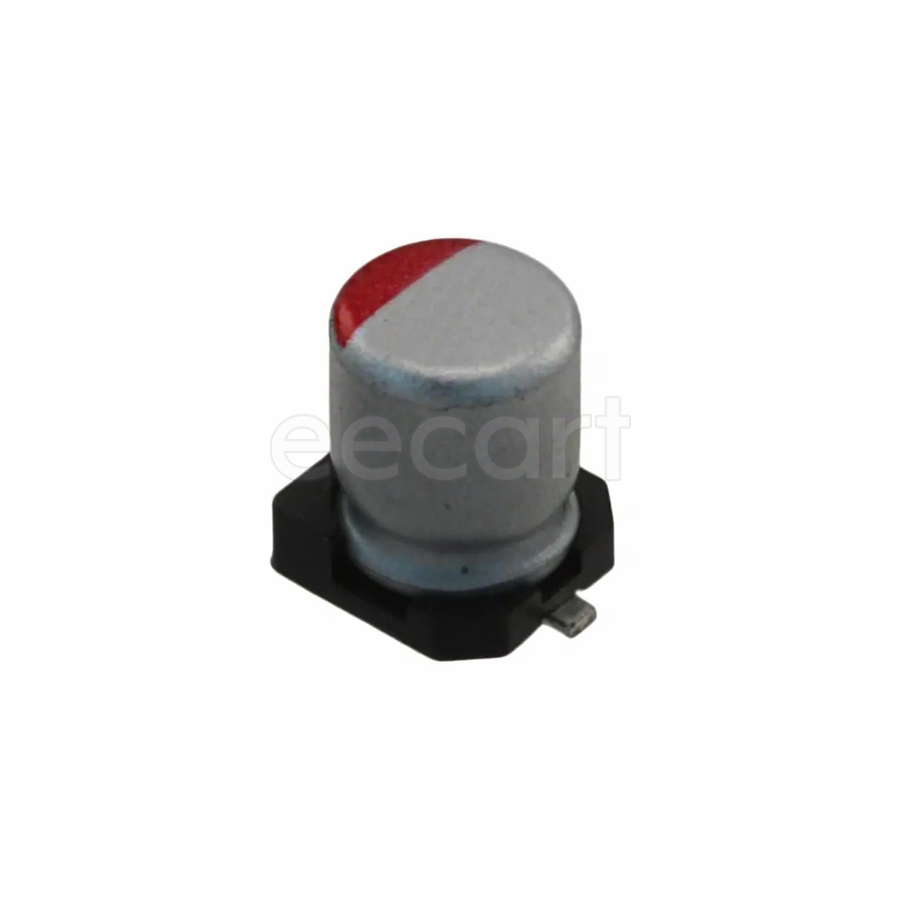

RFS1A100MCN1GB
Manufacturer:
Nichicon
Mfr.Part #:
RFS1A100MCN1GB
Datasheet:
Description:
Polymer Capacitors SMD SMD/SMT 10 µF 20 % 10 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 10 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 220 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 700 mA |
| Height - Seated (Max) | 5.21 mm |
| Length | 5.2 mm |
| Width | 4.3 mm |
| Termination | SMD/SMT |
| Diameter | 4 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 100 µA |
| Dissipation Factor | 0.12 % |
| Height | 4.3 mm |
| Packaging | Reel |
| Voltage Rating | 10 V |
| RoHS | Compliant |
| Ripple Current (AC) | 700 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| Lead Pitch | 1 mm |
Stock: 1164
Distributors
pcbx
pcbxUnit Price$0.49415
Ext.Price$0.49415
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.49415 | $0.49415 |
| 10 | $0.25306 | $2.53060 |
| 25 | $0.24542 | $6.13550 |
| 50 | $0.23801 | $11.90050 |
| 100 | $0.23083 | $23.08300 |
| 300 | $0.20694 | $62.08200 |
| 500 | $0.18552 | $92.76000 |
| 1000 | $0.18381 | $183.81000 |
| 3000 | $0.16930 | $507.90000 |
| 5000 | $0.15594 | $779.70000 |
| 10000 | $0.14363 | $1436.30000 |
