RPS1A470MCN1GS
Manufacturer:
Nichicon
Mfr.Part #:
RPS1A470MCN1GS
Datasheet:
Description:

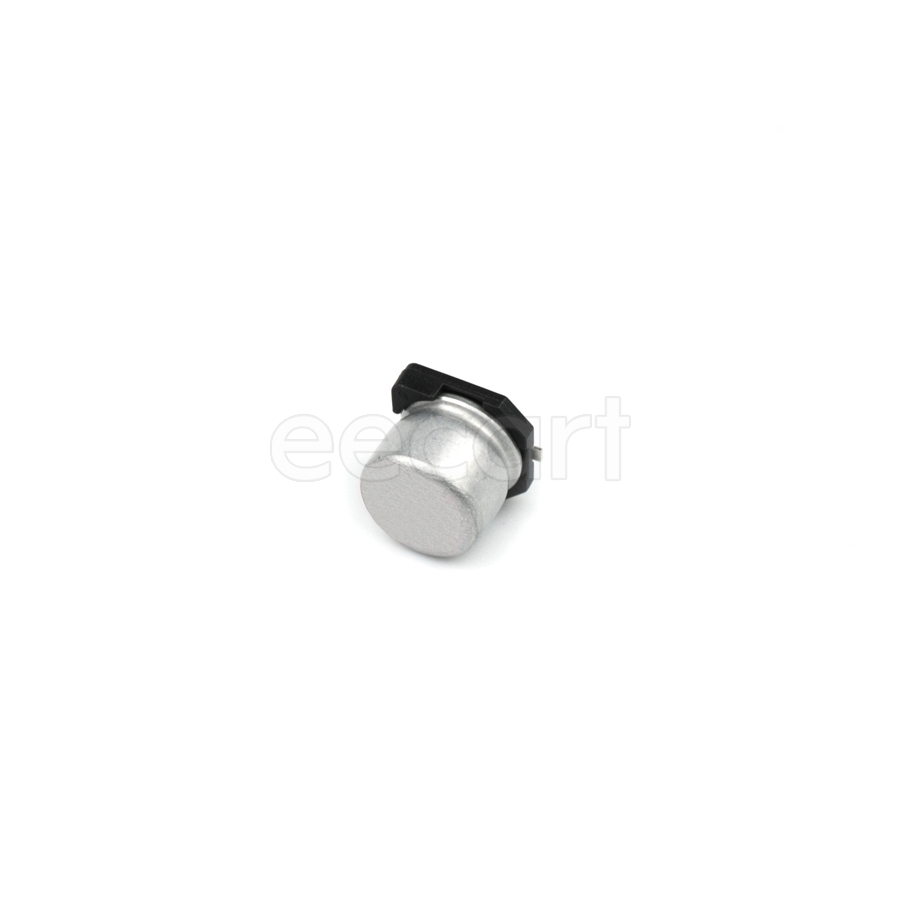

Polymer Capacitors 6.50mmL×6.50mmW SMD/SMT 47 µF 20 % 10 V
| Parameter | Value |
|---|---|
| Capacitance | 47 µF |
| Voltage Rating (DC) | 10 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 40 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 2.1 A |
| Height - Seated (Max) | 6.3 mm |
| Length | 5.7 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 94 µA |
| Dissipation Factor | 0.12 % |
| Height | 5.7 mm |
| Voltage Rating | 10 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 900 µm |
| Voltage | 10 V |
| Ripple Current (AC) | 2.1 A |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Packaging | Reel |
Stock: 3
Distributors
pcbx
pcbxUnit Price$0.56938
Ext.Price$0.56938
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56938 | $0.56938 |
| 10 | $0.28811 | $2.88110 |
| 25 | $0.27246 | $6.81150 |
| 50 | $0.25766 | $12.88300 |
| 100 | $0.24366 | $24.36600 |
| 300 | $0.22545 | $67.63500 |
| 500 | $0.20860 | $104.30000 |
| 1000 | $0.16500 | $165.00000 |
| 3000 | $0.15486 | $464.58000 |
| 5000 | $0.14534 | $726.70000 |
