UCZ2A301MNQ1MS
Manufacturer:
Nichicon
Mfr.Part #:
UCZ2A301MNQ1MS
Datasheet:
Description:

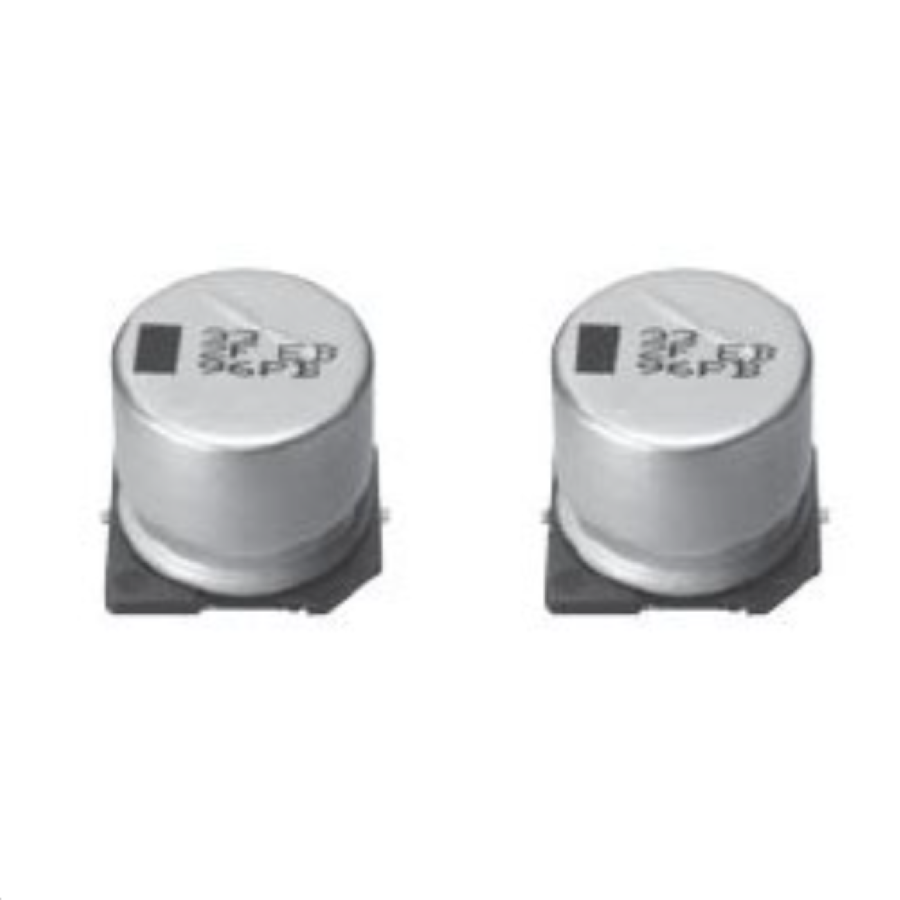

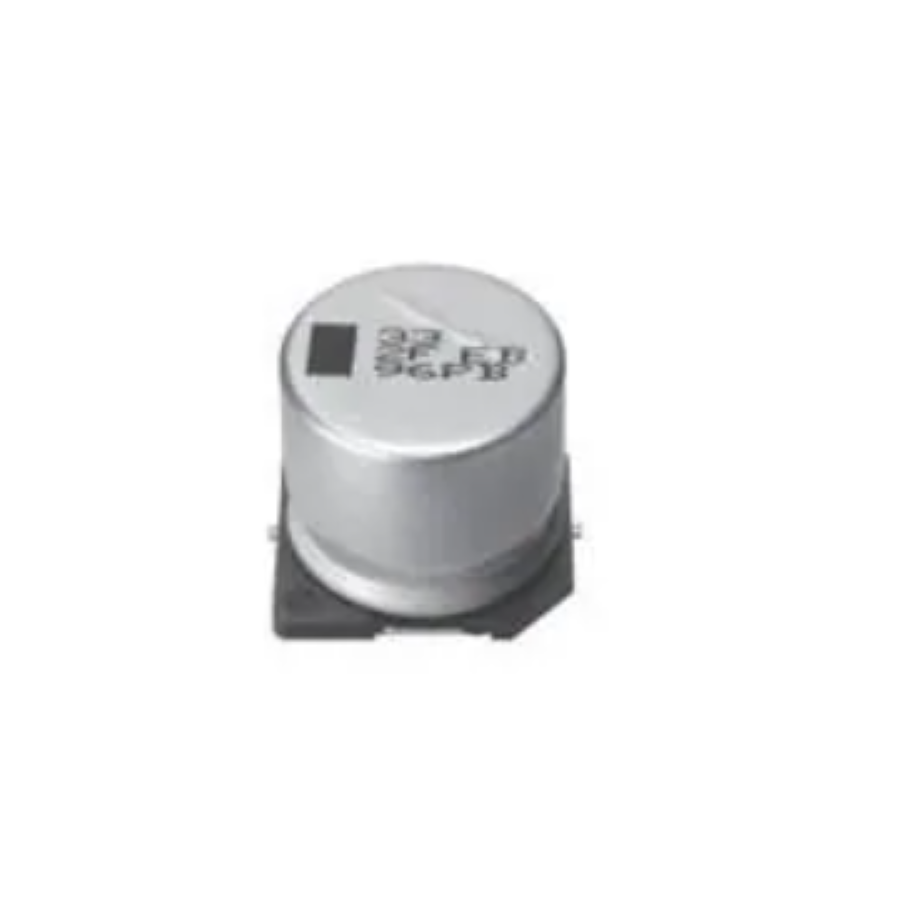

Aluminum Electrolytic Capacitors Radial, Can - SMD SMD/SMT 300 µF 20 % 100 V
| Parameter | Value |
|---|---|
| Capacitance | 300 µF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 110 mΩ |
| Life (Hours) | 4000 hours |
| Ripple Current | 1.7 A |
| Height - Seated (Max) | 22.5044 mm |
| Length | 21.5 mm |
| Termination | SMD/SMT |
| Diameter | 18 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.1 % |
| Packaging | Reel |
| Voltage Rating | 100 V |
| RoHS | Compliant |
| Polarity | Polar |
| Weight | 7.829997 g |
| Ripple Current (AC) | 1.7 A |
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Ripple Current @ Low Frequency | 850 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Mount | Surface Mount |
| Case/Package | Radial |
Stock: 81
Distributors
pcbx
pcbxUnit Price$2.03367
Ext.Price$2.03367
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.03367 | $2.03367 |
| 10 | $1.36766 | $13.67660 |
| 25 | $1.19100 | $29.77500 |
| 50 | $1.03715 | $51.85750 |
