UWX1C101MCL1GB
Manufacturer:
Nichicon
Mfr.Part #:
UWX1C101MCL1GB
Datasheet:
Description:

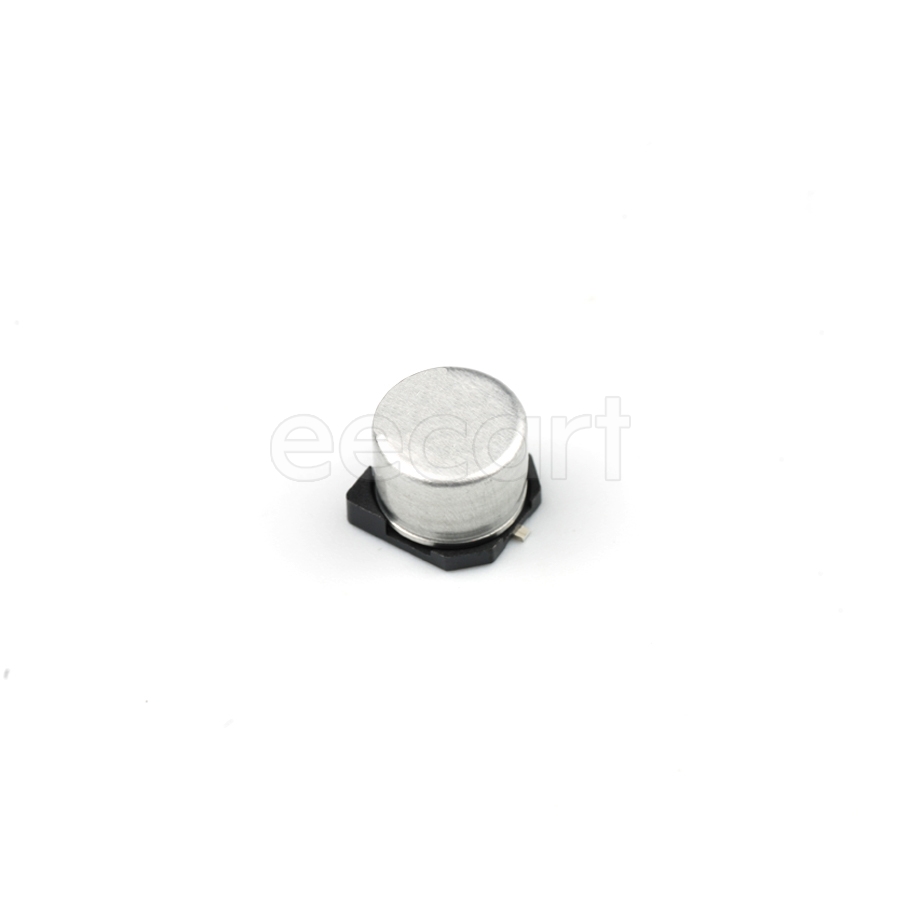

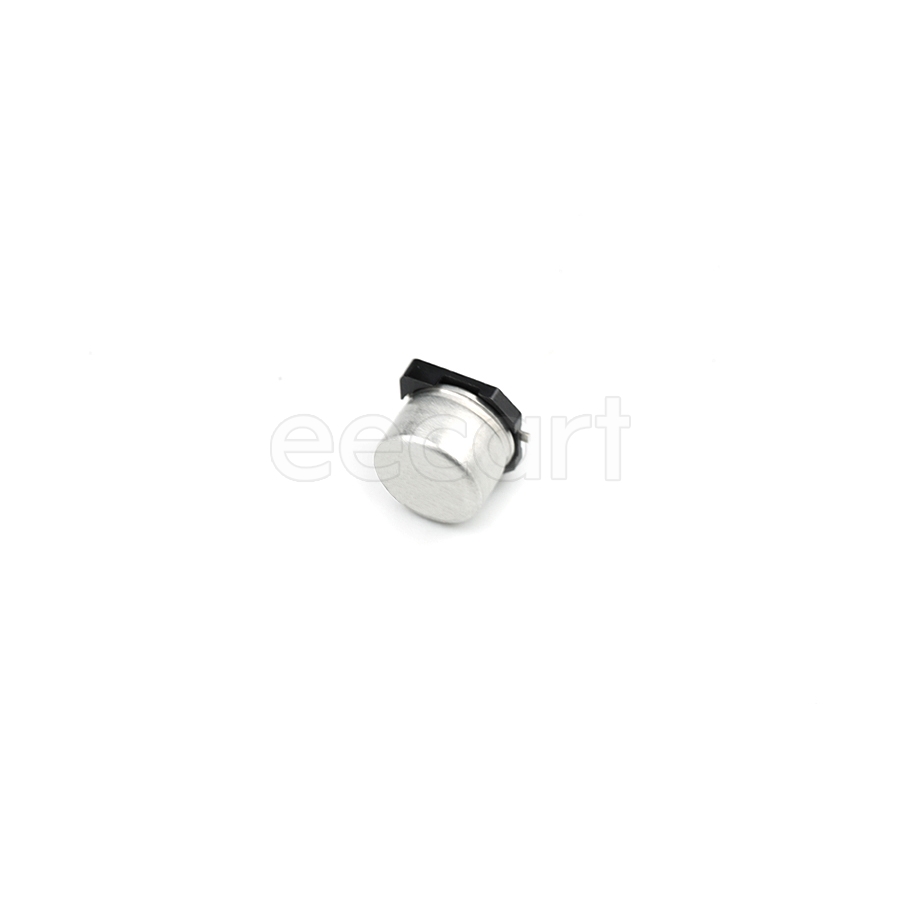

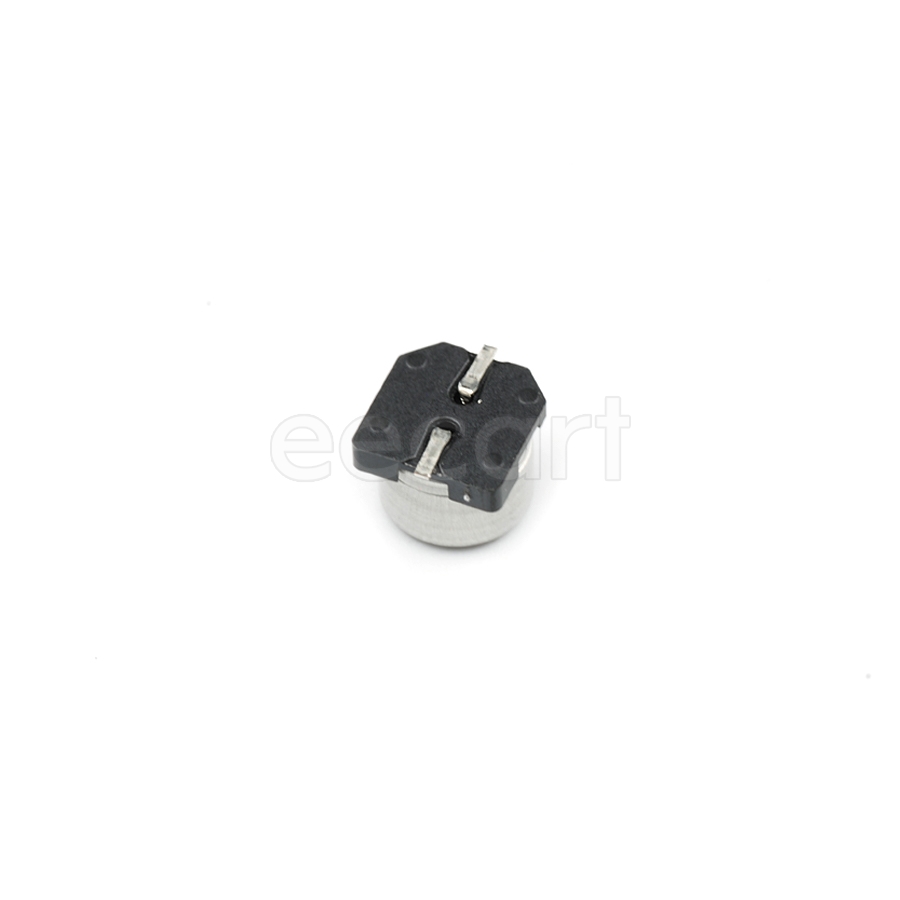

Aluminum Electrolytic Capacitors 6.30mmD×5.40mmH SMD/SMT 100 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 86 mA |
| Height - Seated (Max) | 5.4 mm |
| Length | 5.4 mm |
| Width | 6.6 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 16 V |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.16 % |
| Height | 5.5 mm |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 800 µm |
| Voltage | 16 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Contact Plating | Tin |
| Ripple Current (AC) | 86 mA |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 129 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 86 mA @ 120 Hz |
Stock: 687
Distributors
pcbx
pcbxUnit Price$0.28800
Ext.Price$0.28800
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28800 | $0.28800 |
| 10 | $0.28260 | $2.82600 |
| 25 | $0.28175 | $7.04375 |
| 50 | $0.28091 | $14.04550 |
| 100 | $0.28007 | $28.00700 |
| 300 | $0.24820 | $74.46000 |
| 500 | $0.21996 | $109.98000 |
| 1000 | $0.21450 | $214.50000 |
