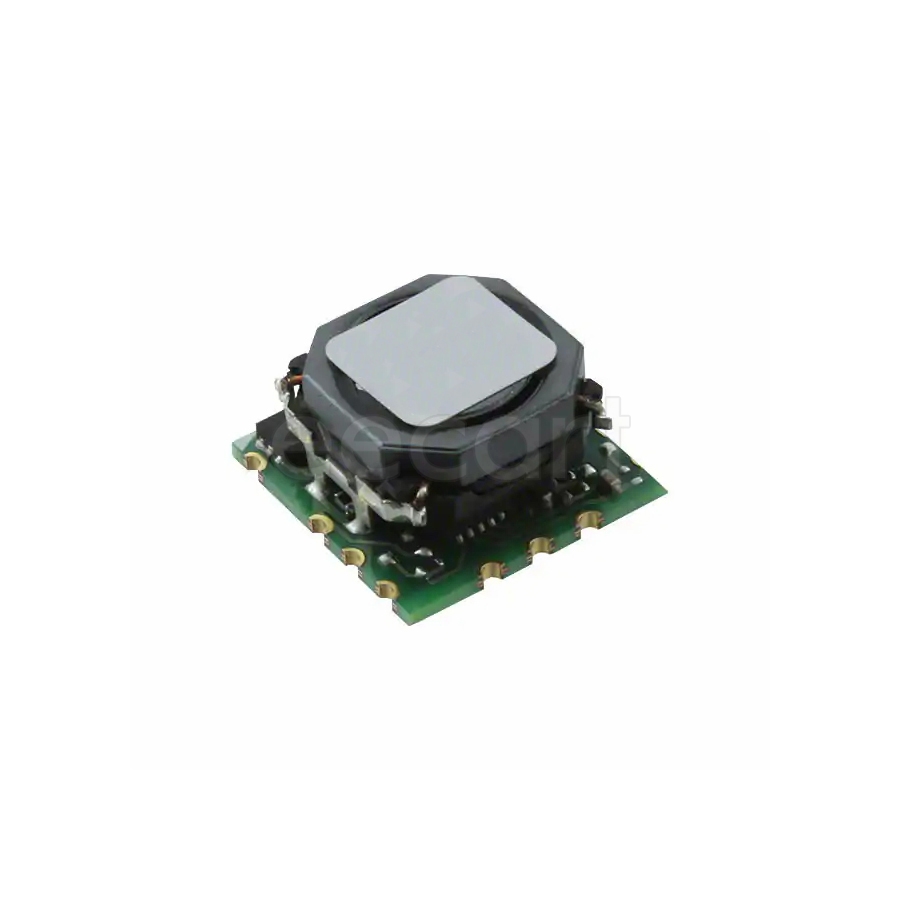

OKL-T/3-W12P-C
Manufacturer:
Murata
Mfr.Part #:
OKL-T/3-W12P-C
Datasheet:
Description:
Board Mount Modules SMD-12 SMD/SMT Current - Output 1:3 A Voltage - Output 1:5.5 V 93 %
| Parameter | Value |
|---|---|
| Length | 12.192 mm |
| Width | 12.192 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Power Rating | 15 W |
| Height | 6.35 mm |
| Packaging | Reel |
| Depth | 12.19 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | OCP, OTP, SCP, UVLO |
| Min Input Voltage | 4.5 V |
| Output Current | 3 A |
| Output Voltage | 5.5 V |
| Operating Supply Voltage | 12 V |
| Output Type | Adjustable |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Power Dissipation | 15 W |
| Power Dissipation | 15 W |
| Max Output Current | 3 A |
| Max Input Voltage | 14 V |
| Number of Outputs | 1 |
| Output Power | 15 W |
| Current - Output 1 | 3 A |
| Efficiency | 93 % |
| Voltage - Output 1 | 5.5 V |
| Min Output Voltage | 591 mV |
| Max Input Voltage (DC) | 14 V |
| Nominal Output Voltage | 5.5 V |
| Nominal Input Voltage | 12 V |
| Max Output Voltage | 5.5 V |
| Max Output Power | 15 W |
| Min Input Voltage (DC) | 4.5 V |
| Isolation | Non-Isolated |
| Schedule B | 8542390000 |
Stock: 661
Distributors
pcbx
pcbxUnit Price$3.77366
Ext.Price$3.77366
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.77366 | $3.77366 |
| 10 | $3.53599 | $35.35990 |
| 25 | $3.48555 | $87.13875 |
| 50 | $3.39834 | $169.91700 |
| 100 | $3.36073 | $336.07300 |
| 300 | $3.27951 | $983.85300 |
