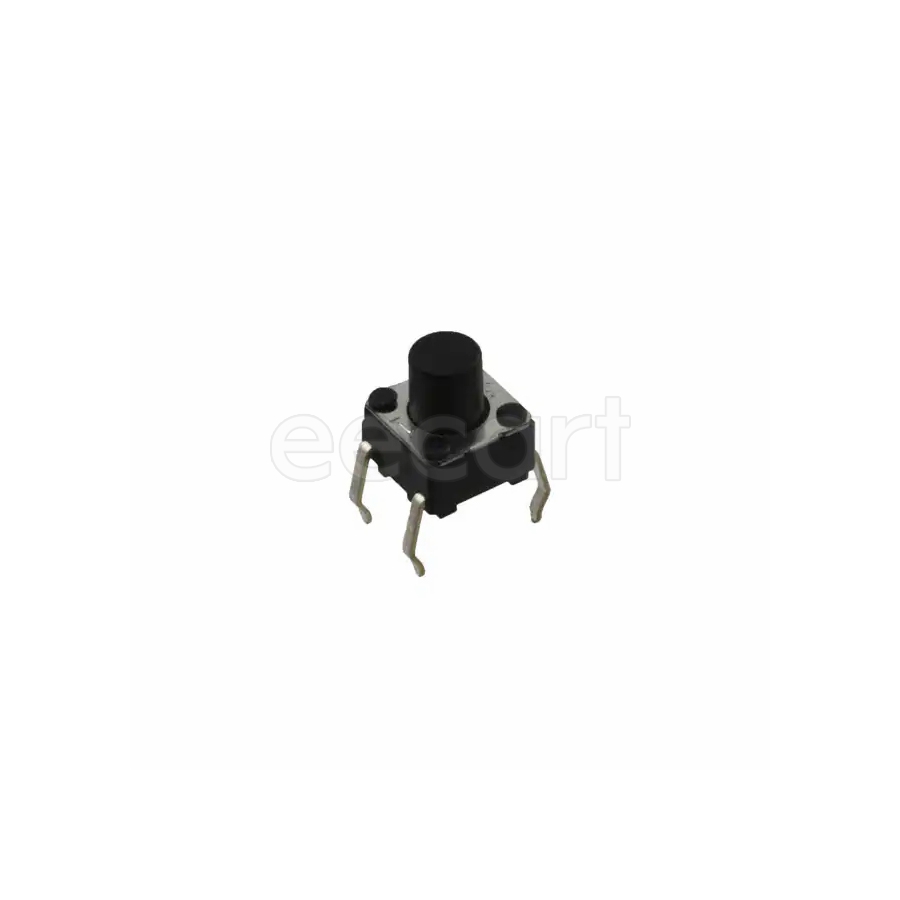

B3F-1060
Manufacturer:
Omron
Mfr.Part #:
B3F-1060
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 980 mN Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Height | 7 mm |
| Circuit Type | SPST-NO |
| Depth | 7.7 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 0.25 g |
| Contact Plating | Gold, Silver |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Actuator Length | 3.6 mm |
| Number of Poles | 1 |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 1 Mcycles |
| Operating Force | 980 mN |
| Switch Travel | 250 µm |
| Mechanical Life | 1 Mcycles |
| Contact Current Rating | 50 mA |
| Schedule B | 8536509065 |
| Mounting Direction | Straight |
| Packaging | Bulk |
| Actuator Type | Standard |
Stock: 1319
Distributors
pcbx
pcbxUnit Price$0.25648
Ext.Price$0.25648
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25648 | $0.25648 |
| 10 | $0.21972 | $2.19720 |
| 25 | $0.20518 | $5.12950 |
| 50 | $0.19420 | $9.71000 |
| 100 | $0.18381 | $18.38100 |
| 300 | $0.17188 | $51.56400 |
| 500 | $0.16073 | $80.36500 |
| 1000 | $0.14164 | $141.64000 |
| 3000 | $0.12482 | $374.46000 |
